STRIPE Hexagon Surface Mount Kit
Product Details
|
Description
|
STRIPE Hexagon Surface Mount Kit
|
|
Part #
|
MASTER_STRIPE_HX_SRF
|

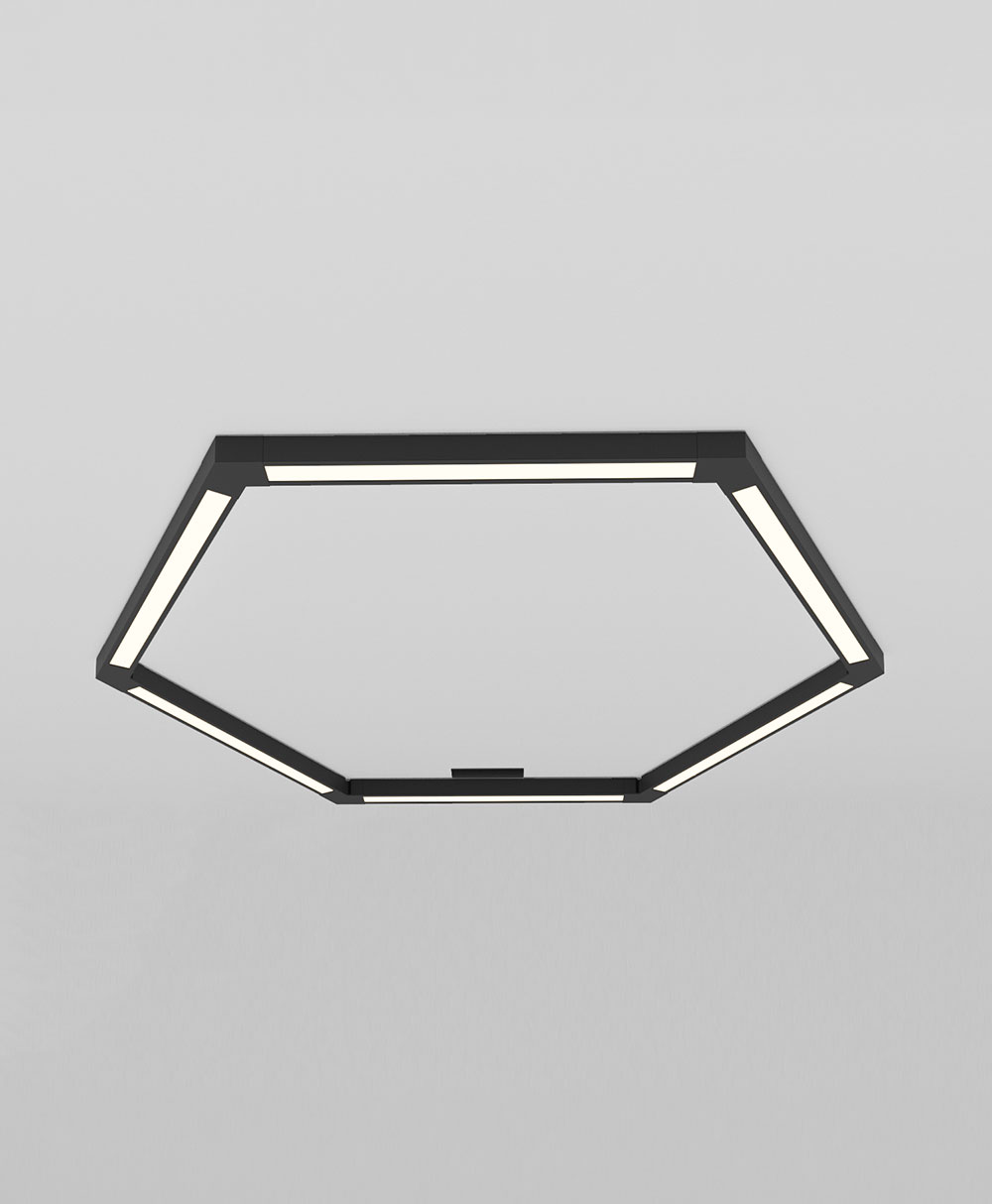

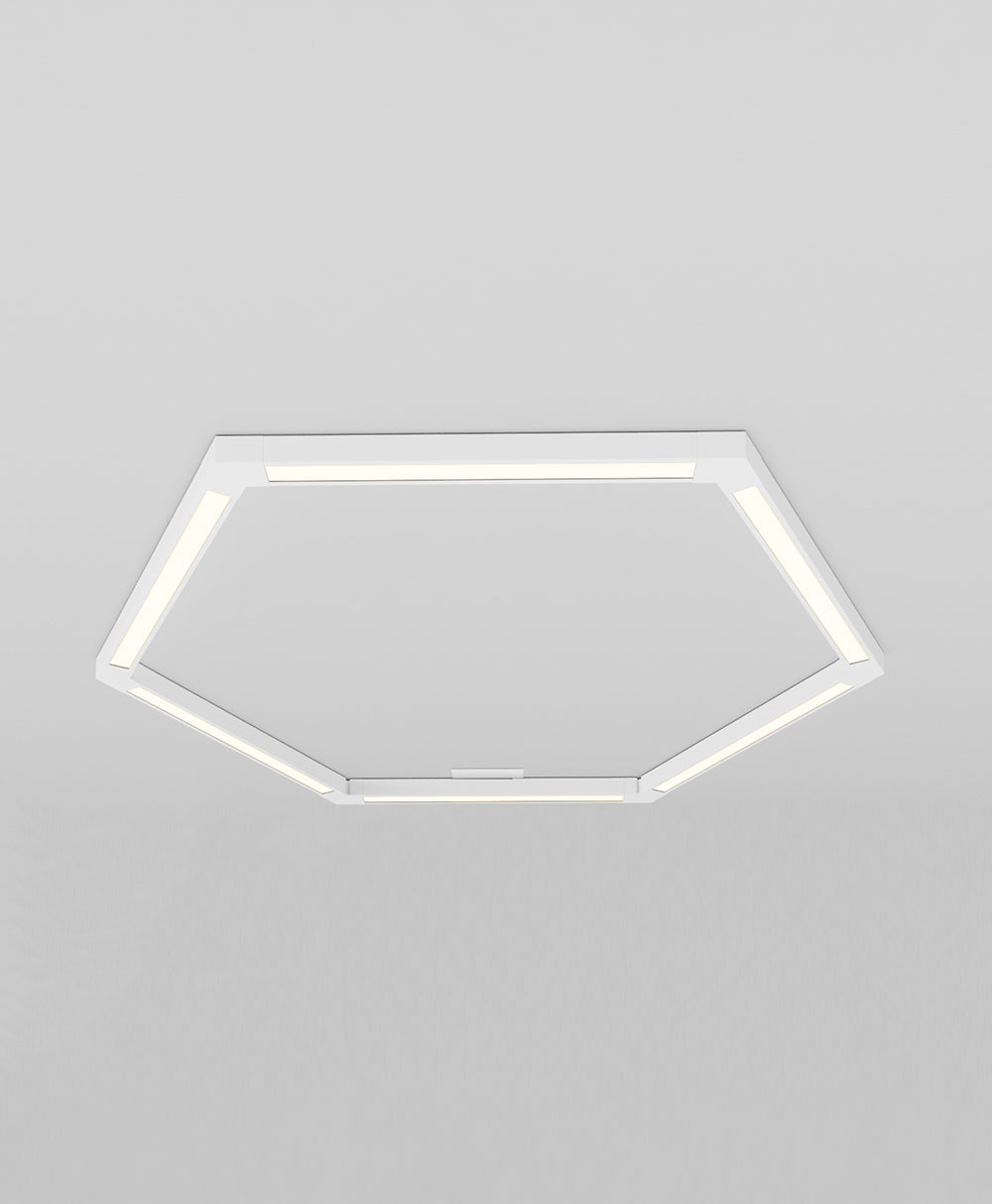

STRIPE is linear made easy. This sleek, plug-and-play linear lighting system is designed for modern spaces. The easy-to-install construction enables seamless power connections through junction boxes, electrical device boxes, hardwiring, or plug-in. The surface mount hexagon kit allows for quick creation of geometric lighting layouts, delivering a bold architectural statement with clean lines and no visible light gaps. Ideal for ceilings and feature installations, the modular design ensures consistent illumination and a streamlined aesthetic across the entire configuration.
Included in Kit:
- STRIPE Light Bar
- 2-Leg Flexible Corners
- Powerfeed of Choice
Feature List
Housing
Durable extruded aluminum frame with frosted smooth lens. Suitable for dry location applications only. 5-position 2700-5000K CCT select switch are provided for individual control.
LED Driver
Fixture is provided with built-in silent non-flicker electronic LED driver, 120V, 50 / 60Hz.
Light Output
Providing up to 1800 lumens, 93 lumens per watt, this lightbar fixture also features a 5-position 2700-5000K CCT select switch.
Dimming
Fixture is 100~10% dimmable with industry standard TRIAC and ELV dimmers.
LED Characteristics
Powered by LED integrated strip that maintains uniform intensity with 70% lumens at 60,000 hours with a rated life of 36,000 hours average life; at 90 CRI.
Beam Spread
The fixture lens provides for 125° beam spread.
Linking
Complete with a joiner, these no shadow linking fixtures can be linked up to 150'.
Mounting Kit
Hardware provided for mounting fixture to standard horizontal surfaces or vertical wall surface.
Operating Temperature
-18°C~40°C (0°F~104°F).
Application
Accent lighting, general illumination (recessed, flushmount, suspended), wall grazer, vanity light, sconce, picture light, closet light, vertical wall light, cove lighting, corner light, under cabinet and millwork.
