STRIPE Ceiling to Wall Kit
Product Details
|
Description
|
STRIPE Ceiling to Wall Kit
|
|
Part #
|
MASTER_STRIPE_CTW
|

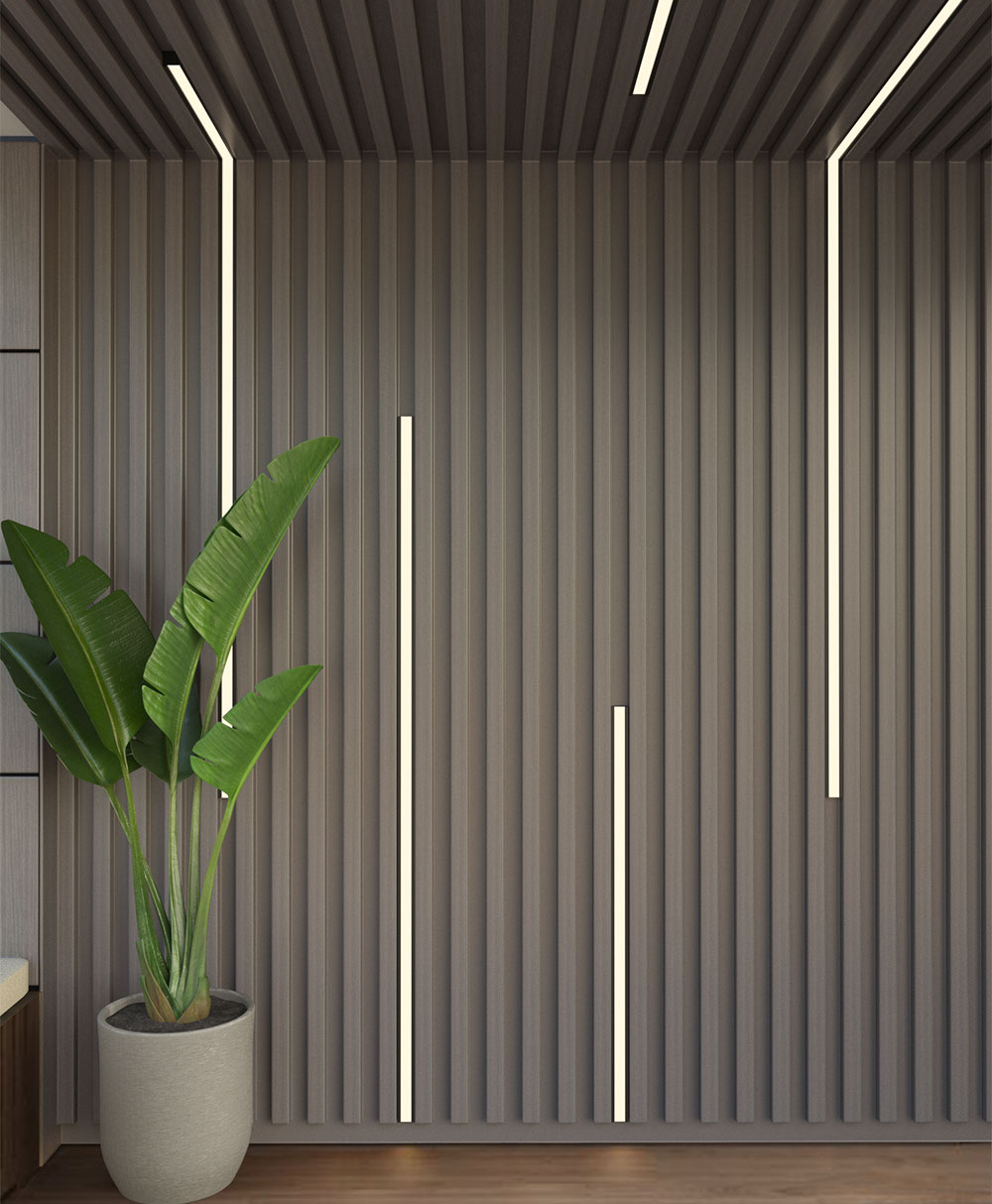

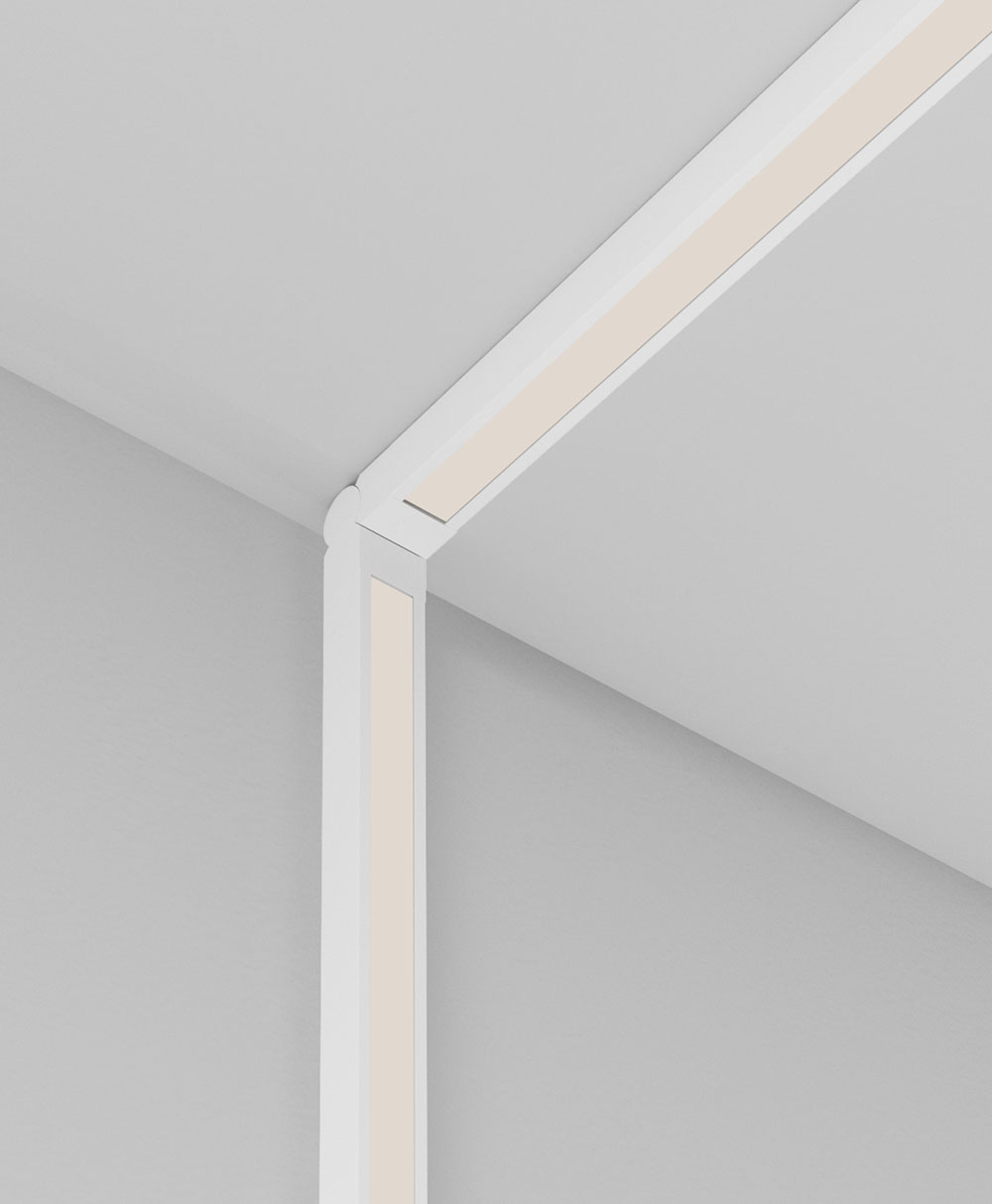

STRIPE is linear made easy. This sleek, plug-and-play linear lighting system is designed for modern spaces. The easy-to-install construction enables seamless power connections through junction boxes, electrical device boxes, hardwiring, or plug-in. The ceiling to wall kit uses inside/outside flexible connectors to transition smoothly between surfaces, enabling continuous runs from ceiling to wall. Ideal for perimeter lighting and accent applications, it delivers a cohesive architectural look while enhancing spatial definition and visual flow.
Included in Kit:
- STRIPE Light Bar
- Inside/Outside Flexible Corner
- End Caps
- Powerfeed of Choice*
*If fixture extension (no power feed) is selected, no power feed will be included. Use this option to add an additional fixture to your stripe system that already has a power feed.
Feature List
Housing
Durable extruded aluminum frame with frosted smooth lens. Suitable for dry location applications only. 5-position 2700-5000K CCT select switch are provided for individual control.
LED Driver
Fixture is provided with built-in silent non-flicker electronic LED driver, 120V, 50 / 60Hz.
Light Output
Providing up to 1800 lumens, 93 lumens per watt, this lightbar fixture also features a 5-position 2700-5000K CCT select switch.
Dimming
Fixture is 100~10% dimmable with industry standard TRIAC and ELV dimmers.
LED Characteristics
Powered by LED integrated strip that maintains uniform intensity with 70% lumens at 60,000 hours with a rated life of 36,000 hours average life; at 90 CRI.
Beam Spread
The fixture lens provides for 125° beam spread.
Linking
Complete with a joiner, these no shadow linking fixtures can be linked up to 150'.
Mounting Kit
Hardware provided for mounting fixture to standard horizontal surfaces or vertical wall surface.
Operating Temperature
-18°C~40°C (0°F~104°F).
Application
Accent lighting, general illumination (recessed, flushmount, suspended), wall grazer, vanity light, sconce, picture light, closet light, vertical wall light, cove lighting, corner light, under cabinet and millwork.
Accessories
Please select a specific item to view its accessories
Specifications
Please select a specific item to view its specifications
Accessories
Please select a specific item to view its accessories
Product Features
Housing
Durable extruded aluminum frame with frosted smooth lens. Suitable for dry location applications only. 5-position 2700-5000K CCT select switch are provided for individual control.
LED Driver
Fixture is provided with built-in silent non-flicker electronic LED driver, 120V, 50 / 60Hz.
Light Output
Providing up to 1800 lumens, 93 lumens per watt, this lightbar fixture also features a 5-position 2700-5000K CCT select switch.
Dimming
Fixture is 100~10% dimmable with industry standard TRIAC and ELV dimmers.
LED Characteristics
Powered by LED integrated strip that maintains uniform intensity with 70% lumens at 60,000 hours with a rated life of 36,000 hours average life; at 90 CRI.
Beam Spread
The fixture lens provides for 125° beam spread.
Linking
Complete with a joiner, these no shadow linking fixtures can be linked up to 150'.
Mounting Kit
Hardware provided for mounting fixture to standard horizontal surfaces or vertical wall surface.
Operating Temperature
-18°C~40°C (0°F~104°F).
Application
Accent lighting, general illumination (recessed, flushmount, suspended), wall grazer, vanity light, sconce, picture light, closet light, vertical wall light, cove lighting, corner light, under cabinet and millwork.
