STRIPE Linear Cove Mounting Kit
Product Details
|
Description
|
STRIPE Linear Cove Mounting Kit
|
|
Part #
|
MASTER_STRIPE_COV_KT
|

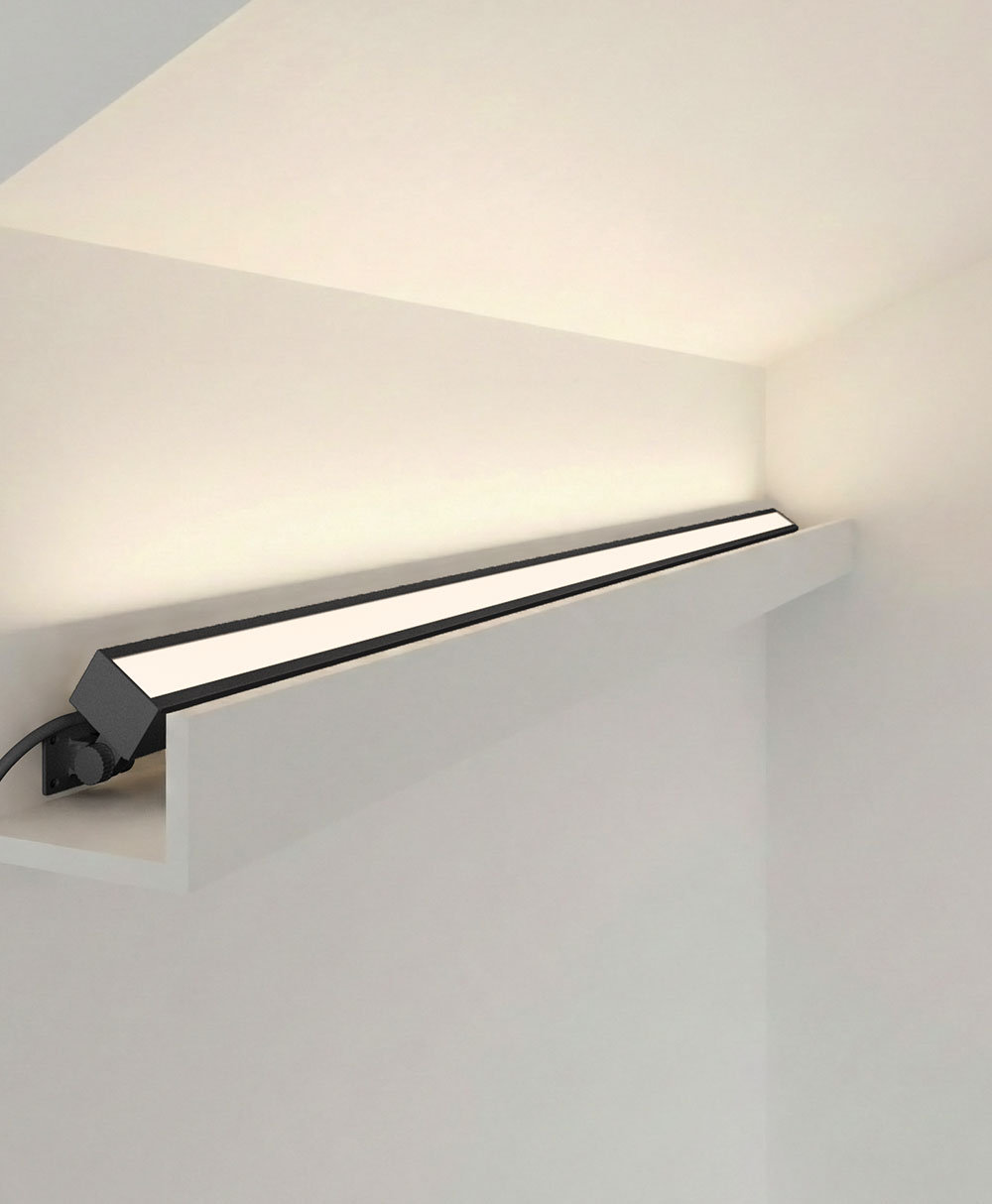

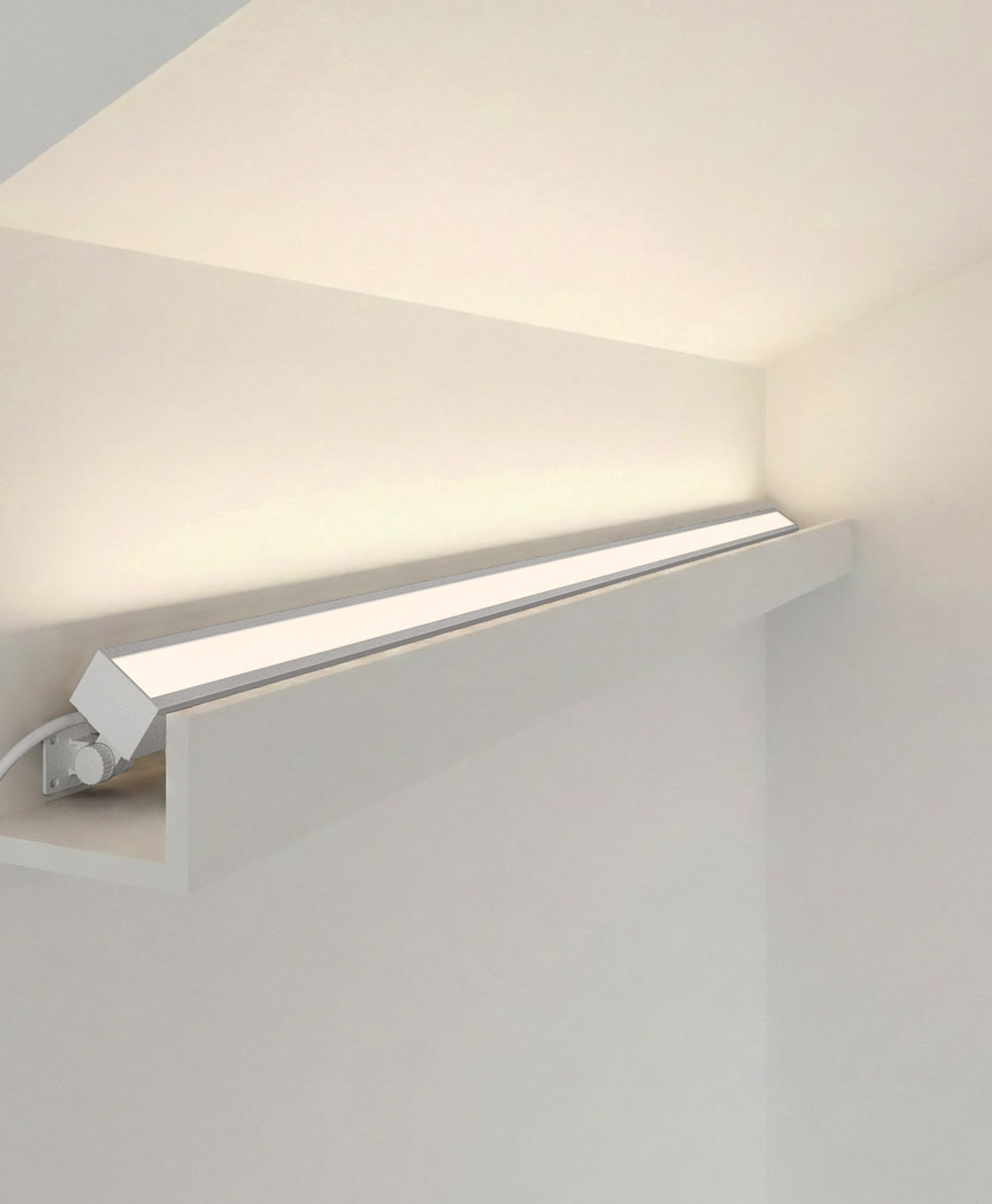

STRIPE is linear made easy. This sleek, plug-and-play, linear lighting system is designed for modern spaces. The cove mounting bracket allows STRIPE to be positioned within ceiling coves to help maximize the light output and deliver a soft ambient glow. The adjustable bracket provides flexibility to direct light upward or downward to achieve a subtle grazing effect.
Included in Kit:
- Light Bar
- Plug-In Cable Power feed
- End Caps
- Adjustable Mounting Brackets
NOTE: Adjustable mounting brackets support one light bar only. Linking multiple bars is not supported.
Feature List
Housing
Durable extruded aluminum frame with frosted smooth lens. Suitable for dry location applications only. 5-position 2700-5000K CCT select switch are provided for individual control.
LED Driver
Fixture is provided with built-in silent non-flicker electronic LED driver, 120V, 50 / 60Hz.
Light Output
Providing up to 1800 lumens, 93 lumens per watt, this lightbar fixture also features a 5-position 2700-5000K CCT select switch.
Dimming
Fixture is 100~10% dimmable with industry standard TRIAC and ELV dimmers.
LED Characteristics
Powered by LED integrated strip that maintains uniform intensity with 70% lumens at 60,000 hours with a rated life of 36,000 hours average life; at 90 CRI.
Beam Spread
The fixture lens provides for 125° beam spread.
Linking
Complete with a joiner, these no shadow linking fixtures can be linked up to 150'.
Mounting Kit
Hardware provided for mounting fixture to standard horizontal surfaces or vertical wall surface.
Operating Temperature
-18°C~40°C (0°F~104°F).
Application
Accent lighting, general illumination (recessed, flushmount, suspended), wall grazer, vanity light, sconce, picture light, closet light, vertical wall light, cove lighting, corner light, under cabinet and millwork.
