STRIP
Product Details
|
Description
|
STRIP
|
|
Part #
|
MASTER_LCF-S1-CCT
|

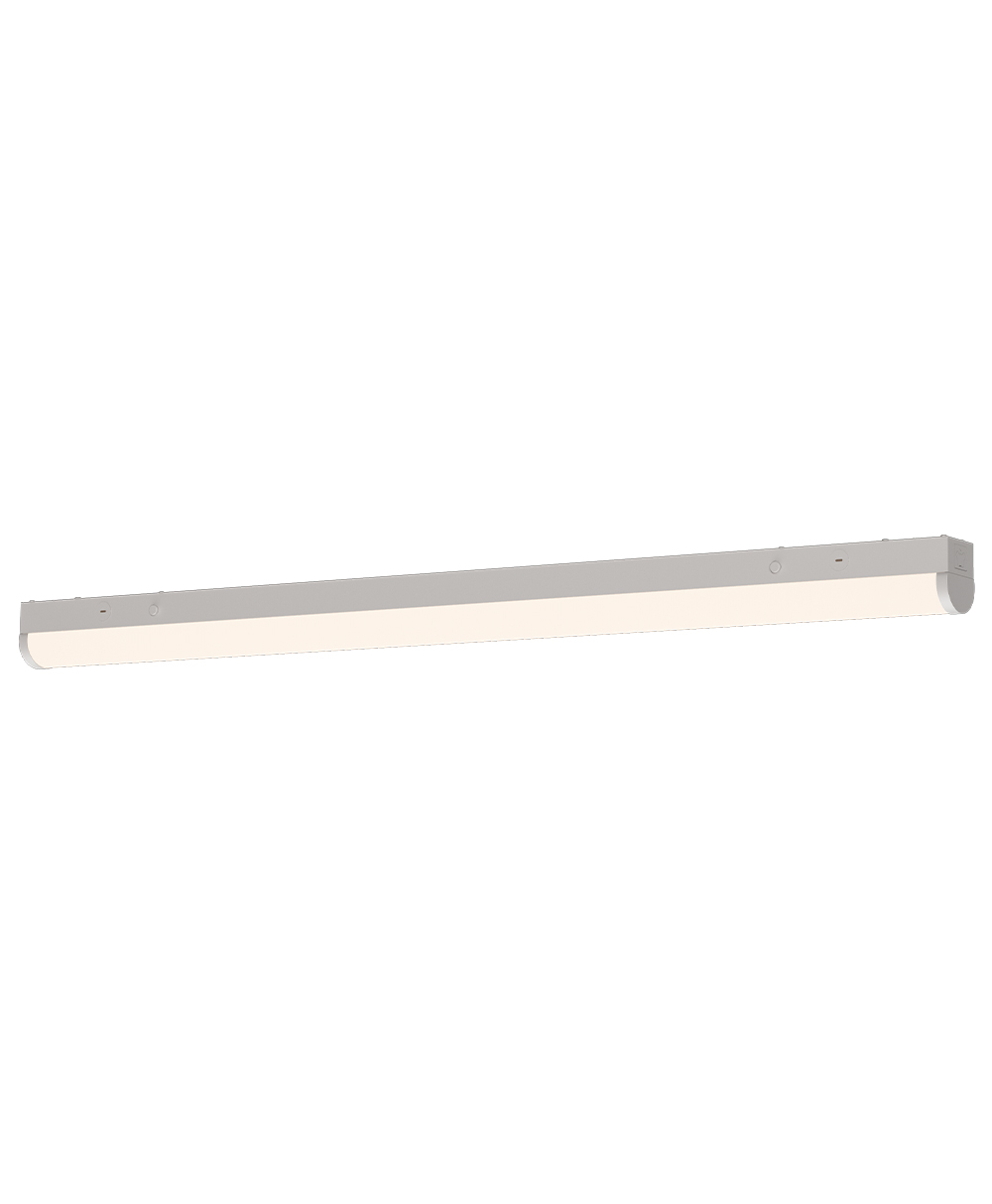

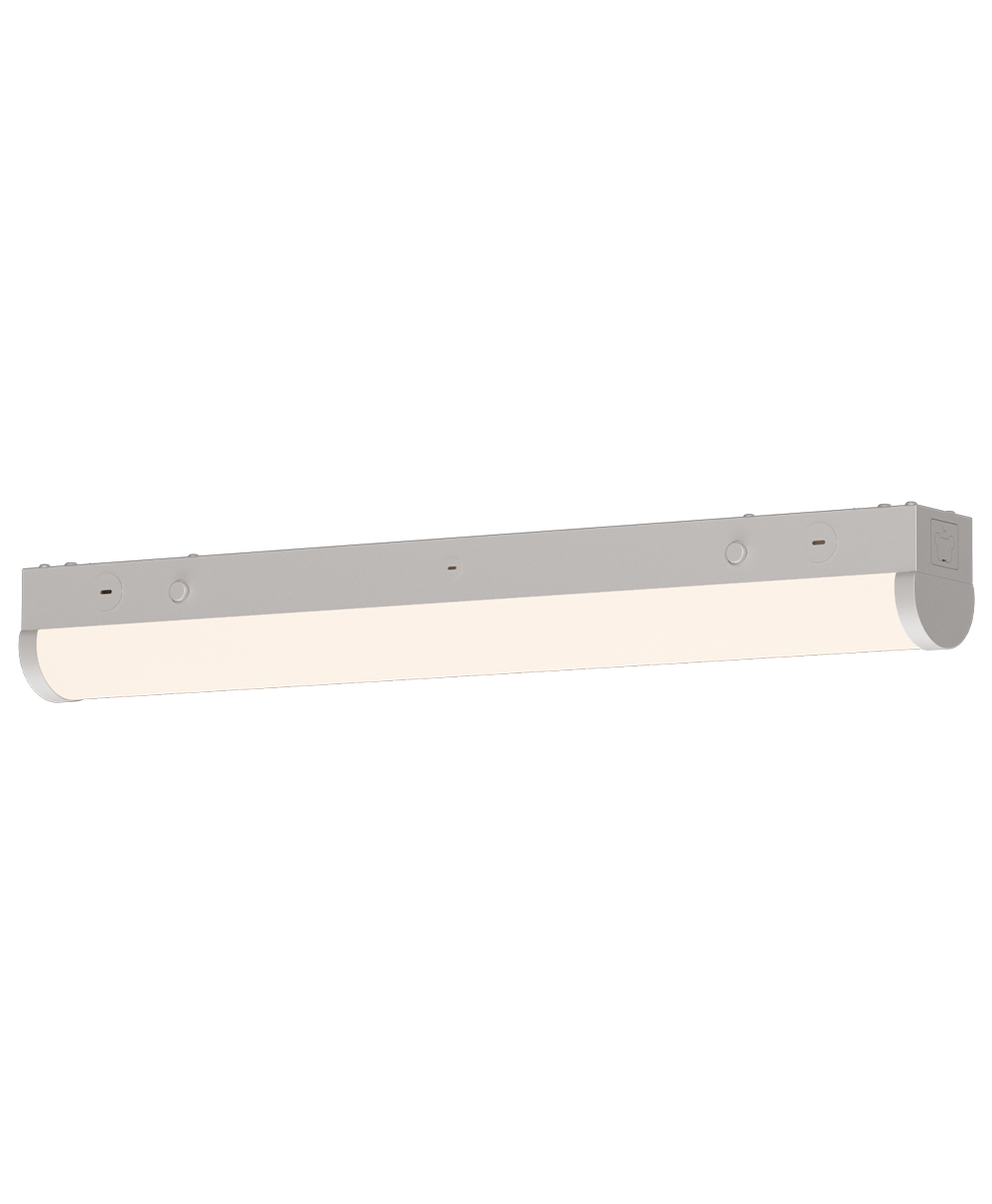

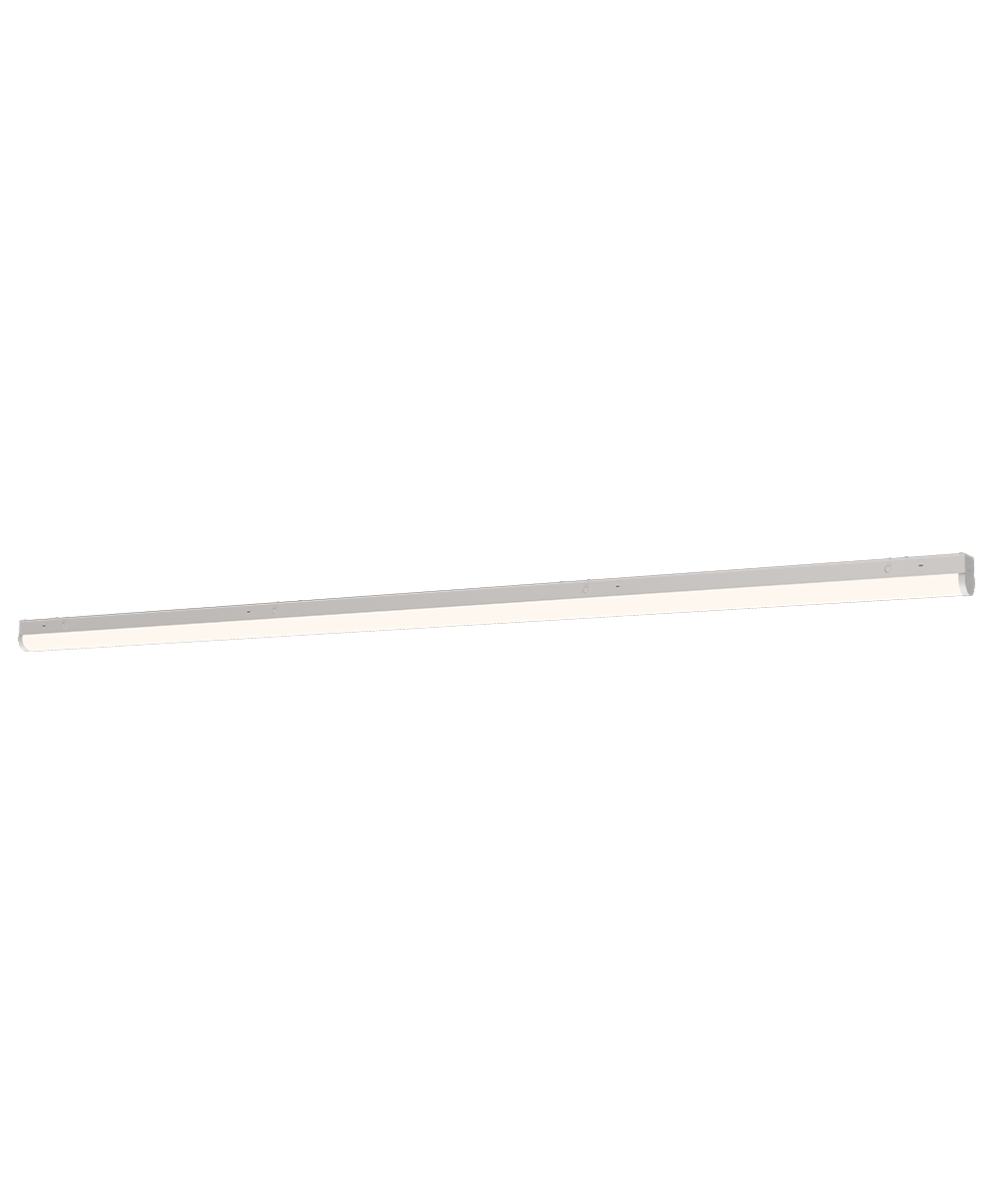

STRIP is a high-efficacy LED strip fixture designed for commercial and light industrial spaces. Available in 2', 4', and 8' lengths, it delivers up to 12,000 lumens with field-selectable wattage and colour temperature, reducing the need to stock multiple SKUs on site. The fixture can be surface mounted, wall mounted, suspended, or installed in tandem with included alignment hardware. Standard 0-10V dimming and a 120-347V driver are built in, with optional occupancy sensor and emergency backup available.
Feature List
Mounting
Can be surface mounted, wall mounted, suspended or in tandem (mounting hardware included). Fixture includes tandem alignment tabs to assist and guide in accurate installation mounting.
LED
CCT selectable between 3000 K, 3500 K or 4000 K.
LED Driver
The fixture includes a 120-347V constant current, 0-10V dimming. Minimum start-up temperature -20°C (-40°F) and maximum operating temperature 50°C (122°C). Pinch locking clips allows for easy opening of driver cover without the use of tools.
Application

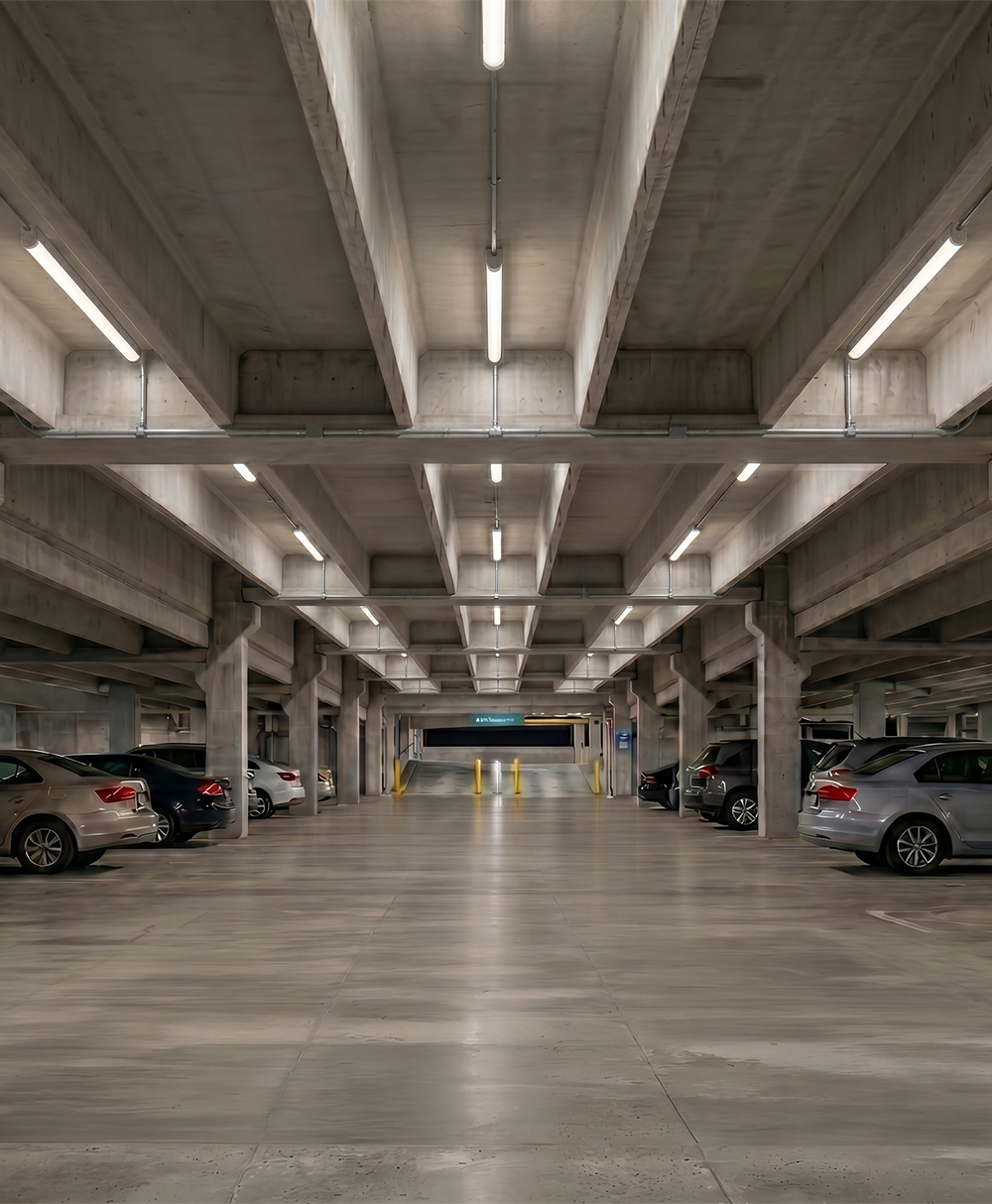

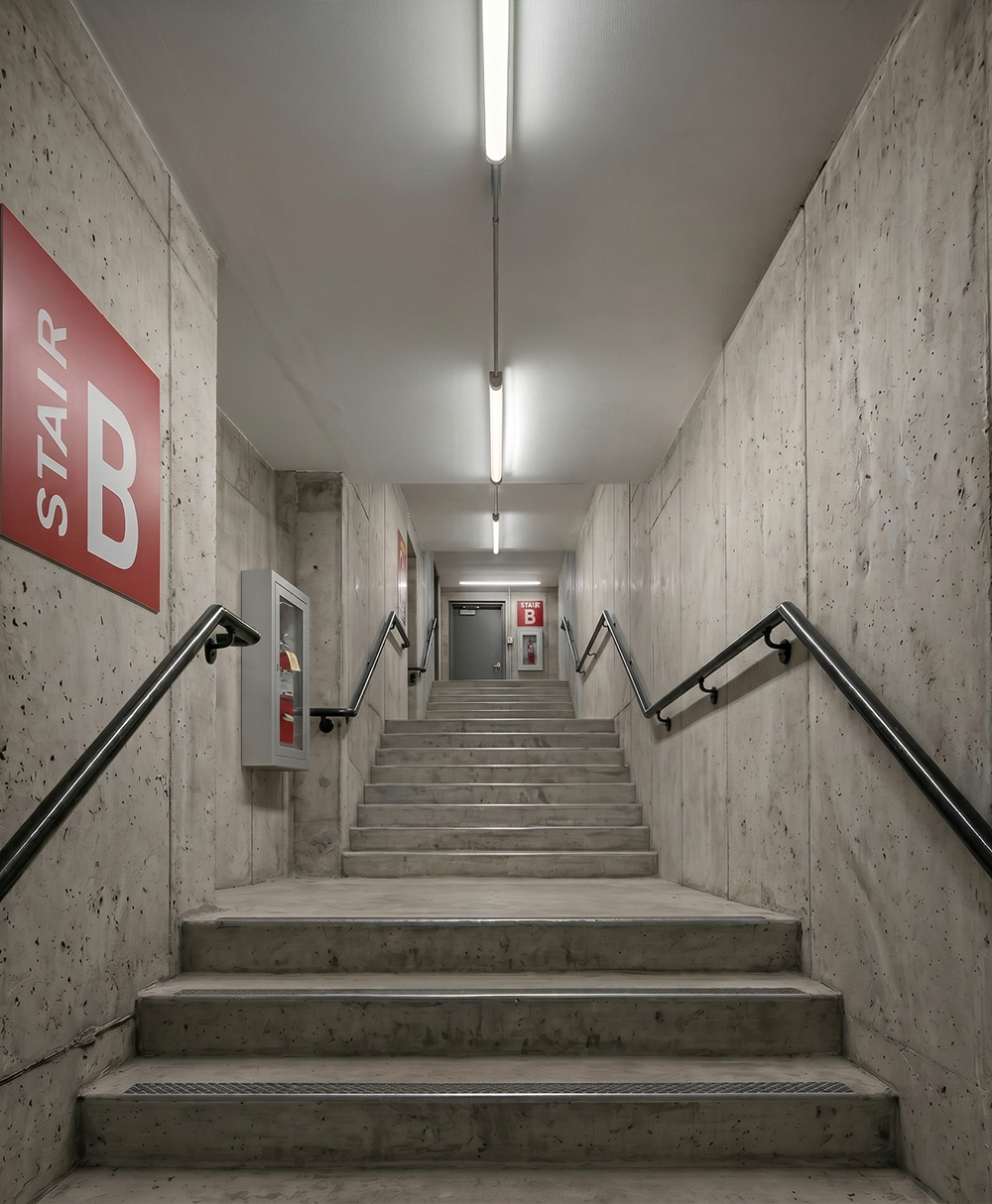

Ideal for storage rooms, staircases and garages.
Additional Options
• Available with optional time adjustable internally mounted occupancy sensor.
• Available with optional emergency backup.
Accessories
Please select a specific item to view its accessories
Specifications
| Product Family | STRIP & WRAP |
Accessories
Please select a specific item to view its accessories
Product Features
Mounting
Can be surface mounted, wall mounted, suspended or in tandem (mounting hardware included). Fixture includes tandem alignment tabs to assist and guide in accurate installation mounting.
LED
CCT selectable between 3000 K, 3500 K or 4000 K.
LED Driver
The fixture includes a 120-347V constant current, 0-10V dimming. Minimum start-up temperature -20°C (-40°F) and maximum operating temperature 50°C (122°C). Pinch locking clips allows for easy opening of driver cover without the use of tools.
Application
Ideal for storage rooms, staircases and garages.
Additional Options
• Available with optional time adjustable internally mounted occupancy sensor.
• Available with optional emergency backup.
