Liteline

Liteline's robust lineup of track fixtures provides flexible lighting solutions for both residential and commercial applications, including but not limited to art galleries, retail and higher education. With a range of track compatibility including Halo and Juno, a variety of outputs, color temperatures, beam angles and accessories, our track collection can accommodate your project's needs.

TRACK

Light Residential

Single Circuit 120V

TRACK LENGTHS

FINISH

See Compatible Track Heads

A-Line

Residential / Commercial

Single / 2 Circuit 120V

TRACK LENGTHS

FINISH

See Compatible Track Heads

Powergear

Commercial

2 Circuit / 2 Neutral
3 Circuit / 1 Neutral

TRACK LENGTHS

FINISH

See Compatible Track Heads

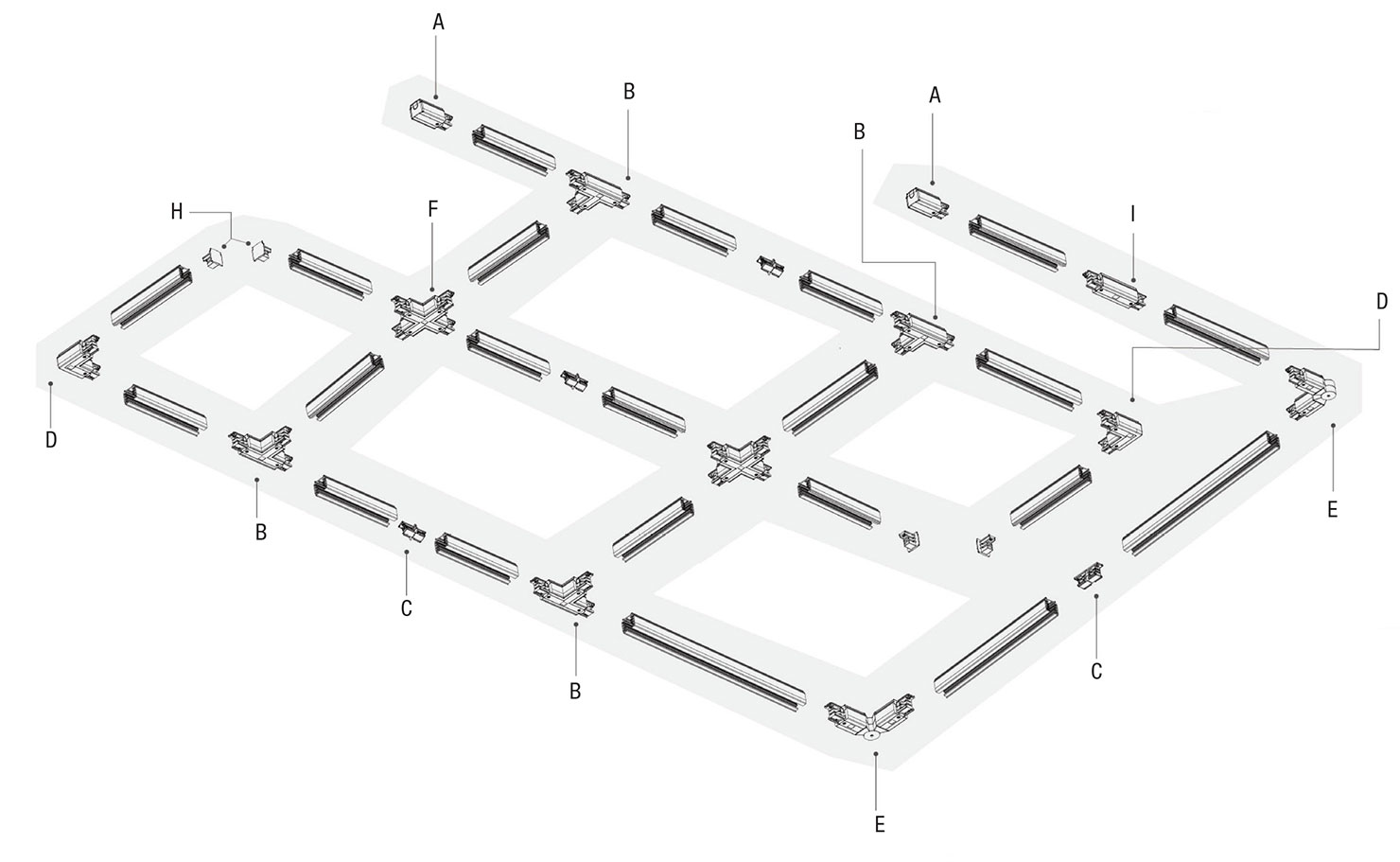

TRACK SYSTEM DIAGRAM

GUIDE

A-line 1-Circuit
Powergear 2-Circuit / 2 Neutral
Powergear 3-Circuit / 1 Neutral

*L, R, 1, 2 Help to define the neutral wire position. Refer to spec sheet for more details. "A" option indicates isolating power.

ADD RIGIDITY

Provide strength to track with A-Beam and H-Channel. Ideal for commercial applications including retail and hospitality, these rigid lighting channels require fewer suspension points allowing for a cleaner ceiling space.

A-Beam

Commercial

Single / 2 Circuit 120V

FEATURES

Ability to add up-lighting for design flexibility

TRACK LENGTHS

FINISH

H-Channel

Commercial

FEATURES

12 ft spacing between suspension points
Integrate track into store fixtures in retail environment

TRACK LENGTHS

FINISH

MOUNTING

TRIMLESS MADE EASY

A-Line and Powergear track can be trimless with the use of PrecisionPro pre-formed recessed drywall channel. PrecisionPro installs like any other drywall and then the track simply surface mounts into the channel and corner pieces, avoiding the headaches of traditional recessed track systems. PrecisionPro comes standard with a wood backing, or upgrade to a steel backing for added support. Upon order 2 pieces are packed together to ensure the drywall ships safely to the job site.

Reduce intensive labor & costs
Sleek finish with minimal effort
Level 5 finish

A-Line's PrecisionPro drywall program is the only solution to have trimless, fire-rated track!

TRIMLESS TRACK INSTALLATION

Using drywall screws, mount the PrecisionPro drywall panel/channel to the building's frame. A metal backing plate on the drywall provides added support when mounted.

Install drywall around the PrecisionPro drywall. Note: PrecisionPro edges are sloped for easy taping and smooth mudding.

Install the fixture. For downlights use the spring clips or adjustable mounting brackets, depending on the fixture, to hold in place. Track will screw into the drywall as though it is being surface mounted. Be sure the drywall screws go into the integrated metal backing plate.
