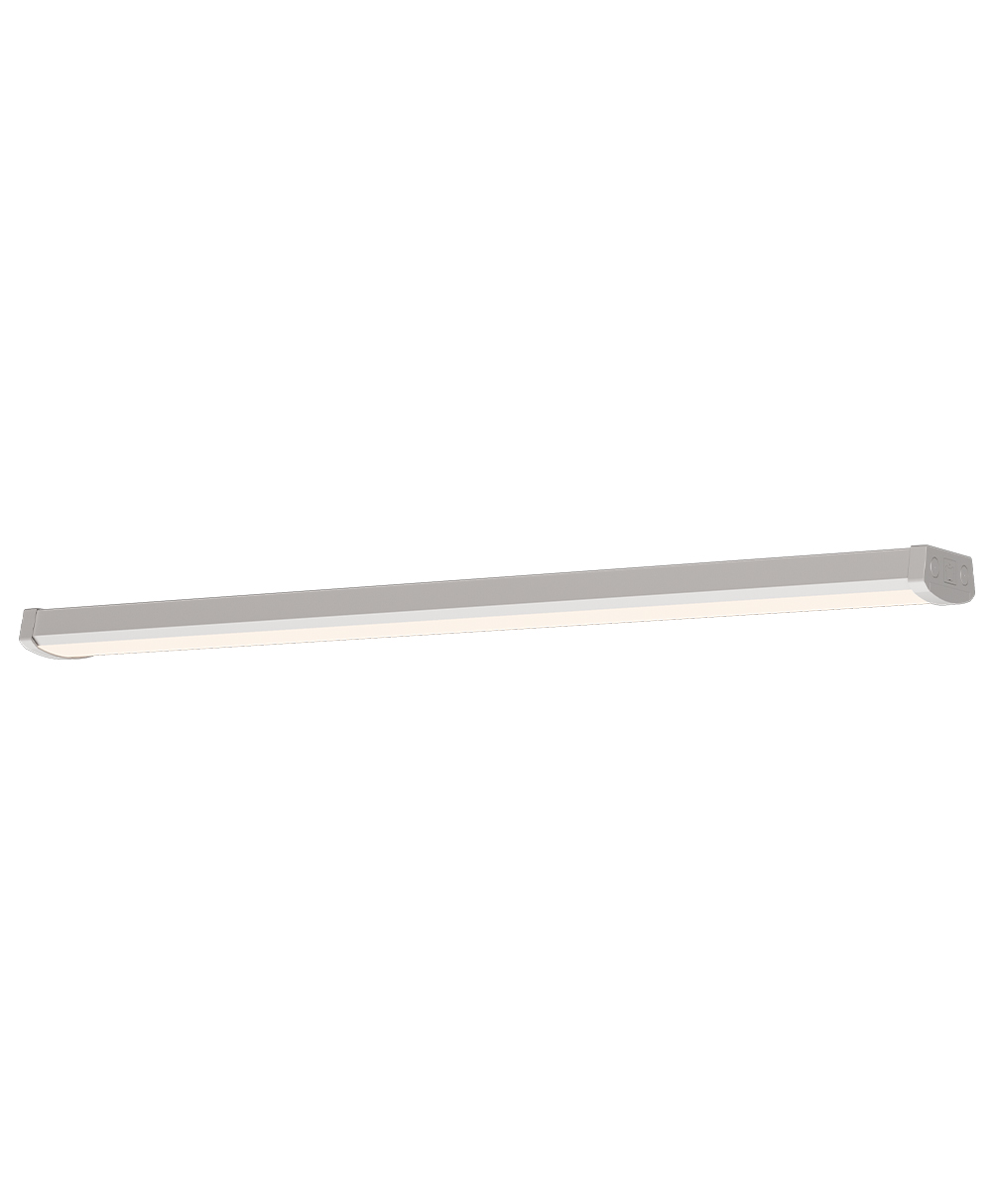

WRAP is a compact LED linear fixture built for commercial spaces that need reliable, broad illumination. Available in a 4' length, it delivers up to 5,200 lumens with field-selectable wattage and colour temperature for on-site flexibility. The fixture can be surface mounted or wall mounted, with a frosted lens and tool-free driver access for easy maintenance. Standard 0-10V dimming and a 120-347V driver are included, with optional occupancy sensor and emergency backup available.
Feature List
Mounting
Can be surface-mounted or wall-mounted.
LED
CCT selectable between 3000 K, 3500 K or 4000 K.
LED Driver
The fixture includes a 120-347V constant current, 0-10V dimming. Minimum start-up temperature -20°C (-40°F) and maximum operating temperature 40°C (104°C). Easy lens removal allows for easy opening of driver cover without the use of tools.
Application

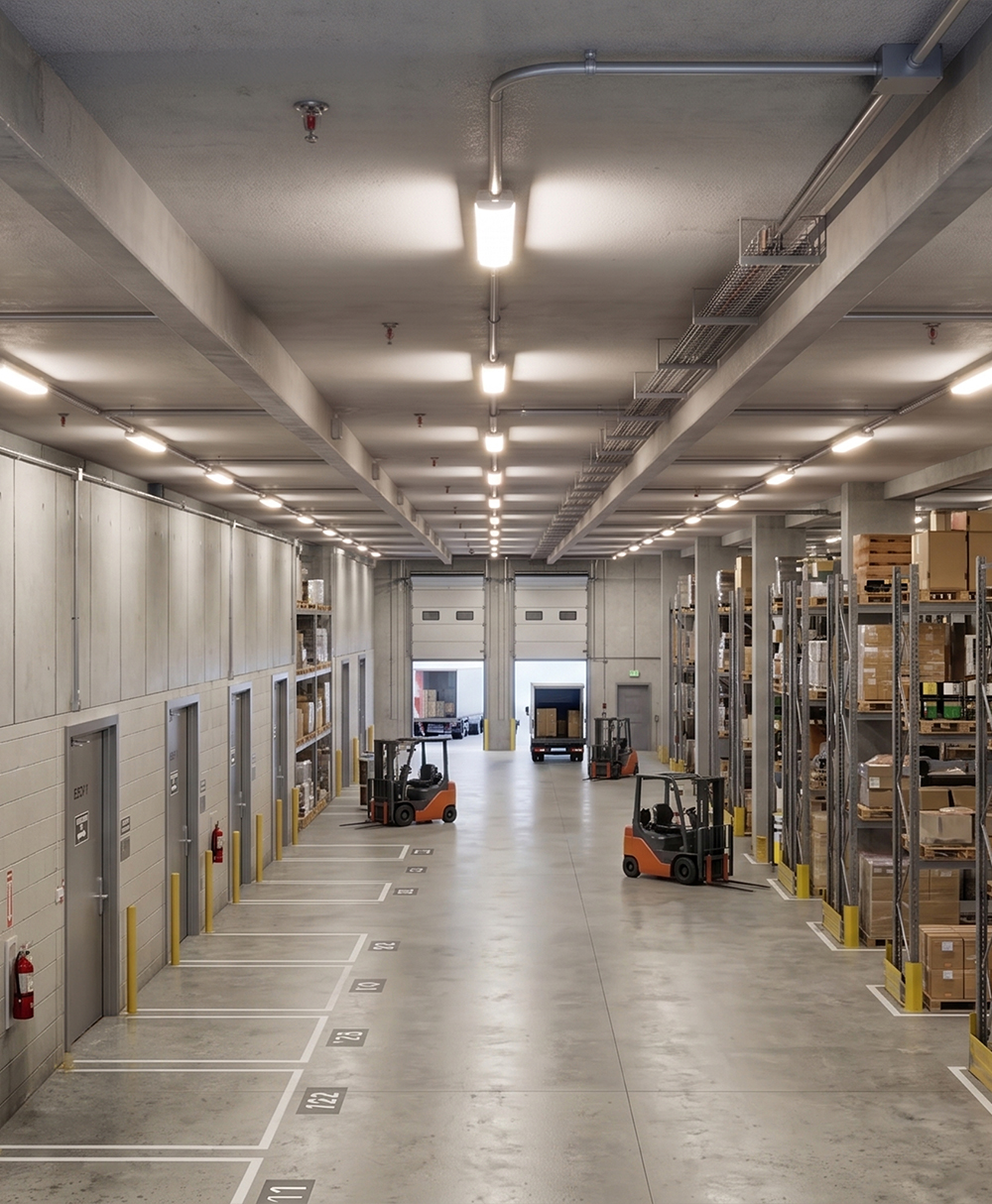

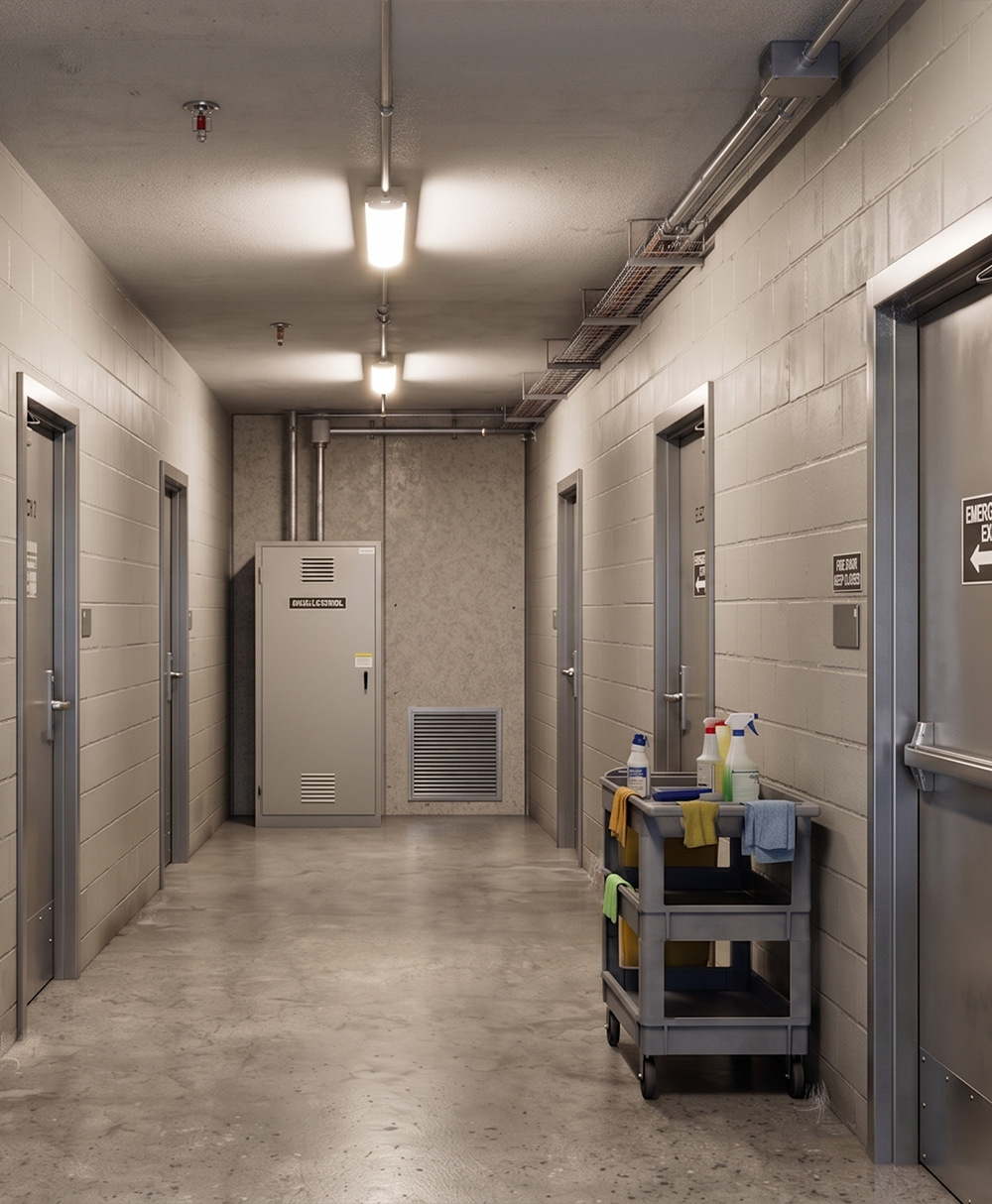

Ideal for storage rooms, staircases and garages.
Additional Options
• Available with optional time adjustable internally mounted occupancy sensor.
• Available with optional emergency backup
Accessories
Please select a specific item to view its accessories
Specifications
| Product Family | STRIP & WRAP |
Accessories
Please select a specific item to view its accessories
Product Features
Mounting
Can be surface-mounted or wall-mounted.
LED
CCT selectable between 3000 K, 3500 K or 4000 K.
LED Driver
The fixture includes a 120-347V constant current, 0-10V dimming. Minimum start-up temperature -20°C (-40°F) and maximum operating temperature 40°C (104°C). Easy lens removal allows for easy opening of driver cover without the use of tools.
Application
Ideal for storage rooms, staircases and garages.
Additional Options
• Available with optional time adjustable internally mounted occupancy sensor.
• Available with optional emergency backup
