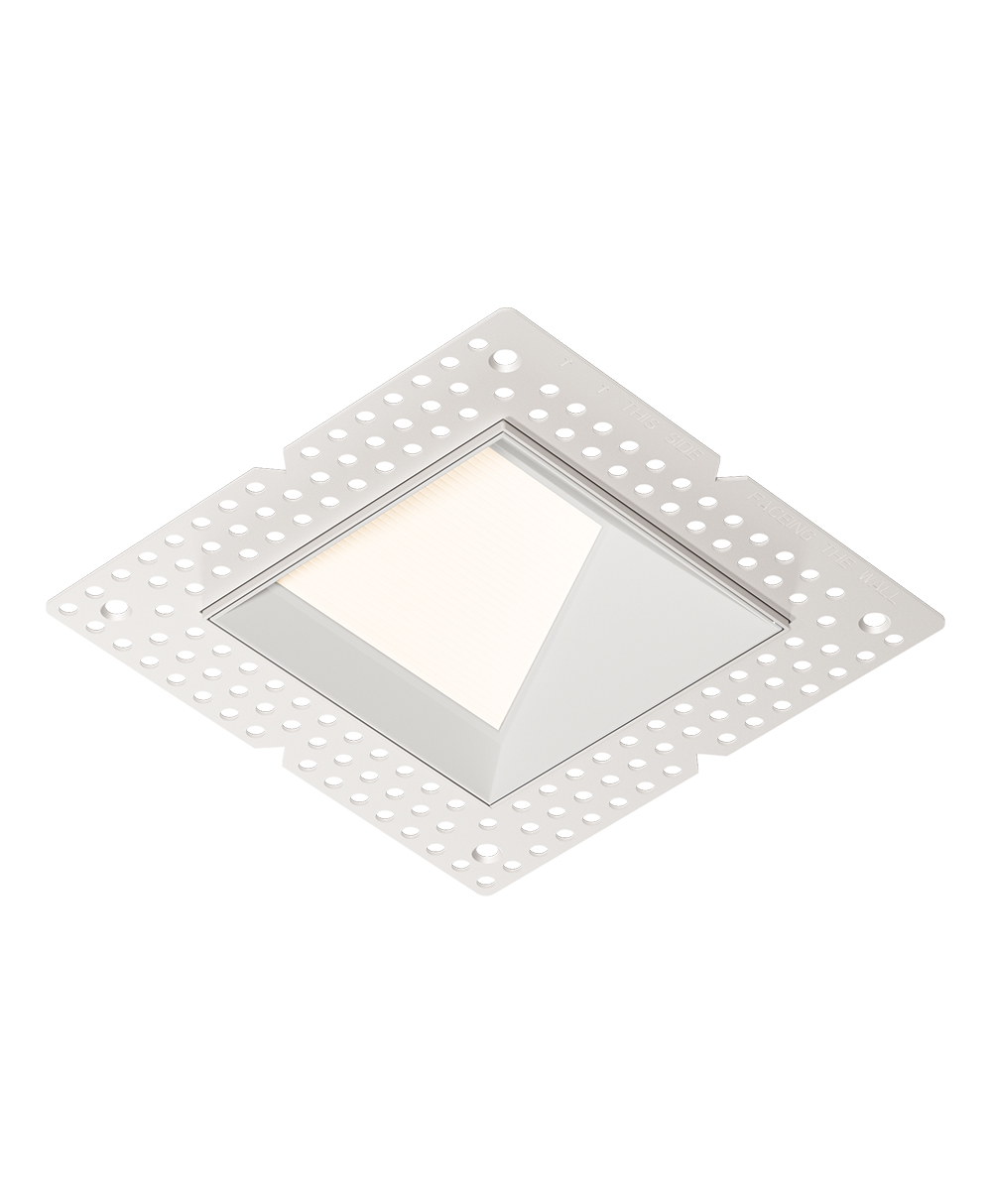

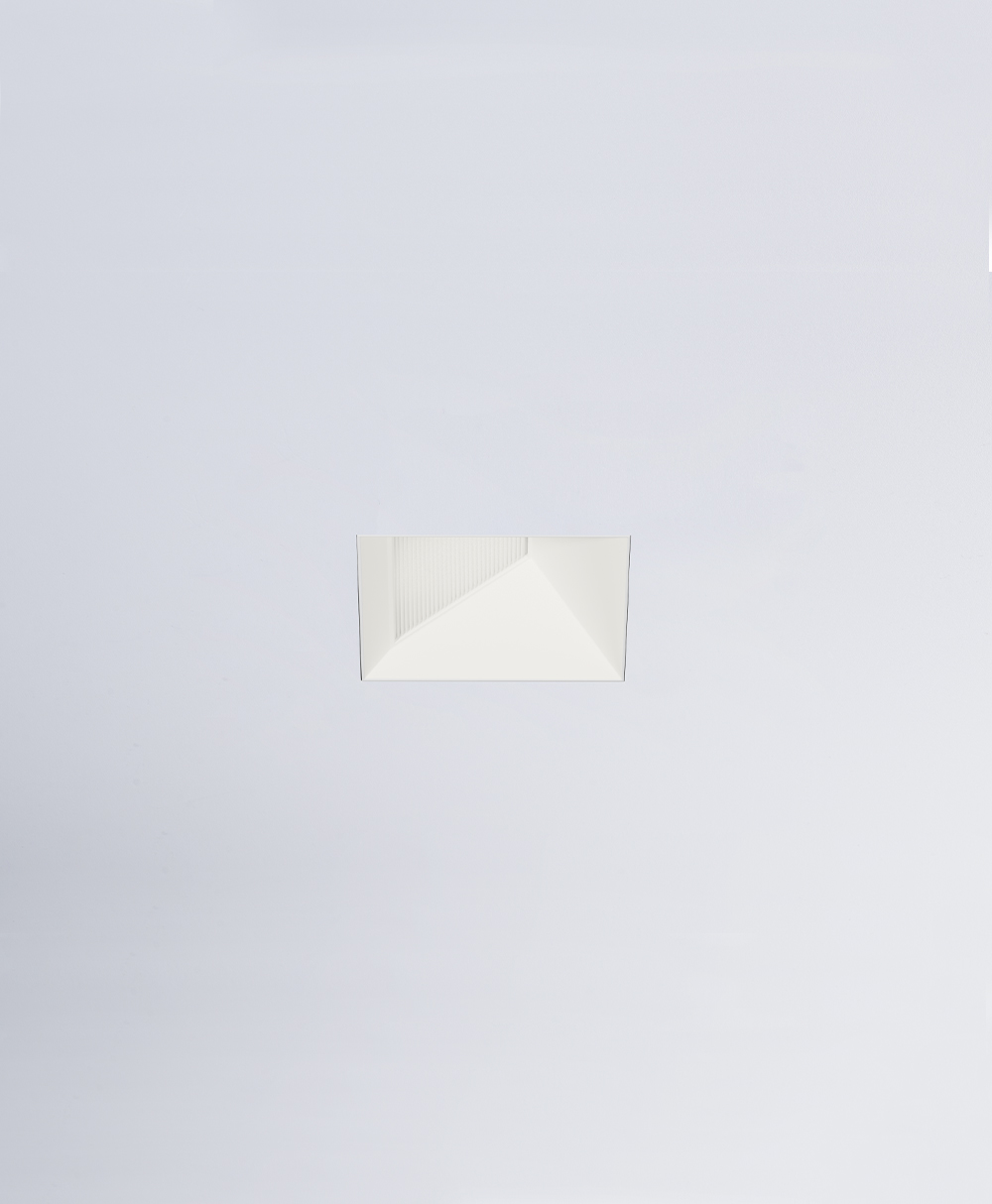

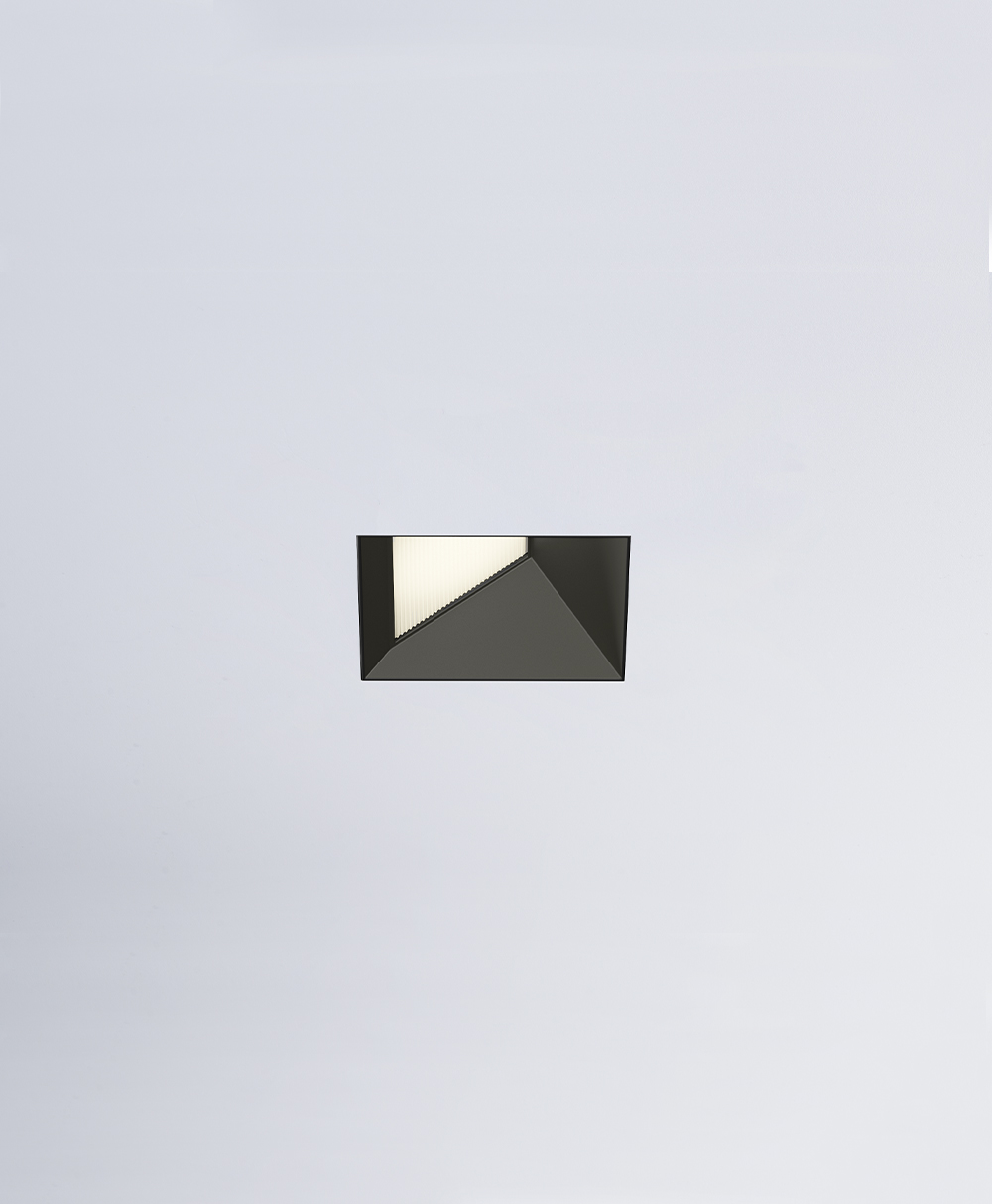

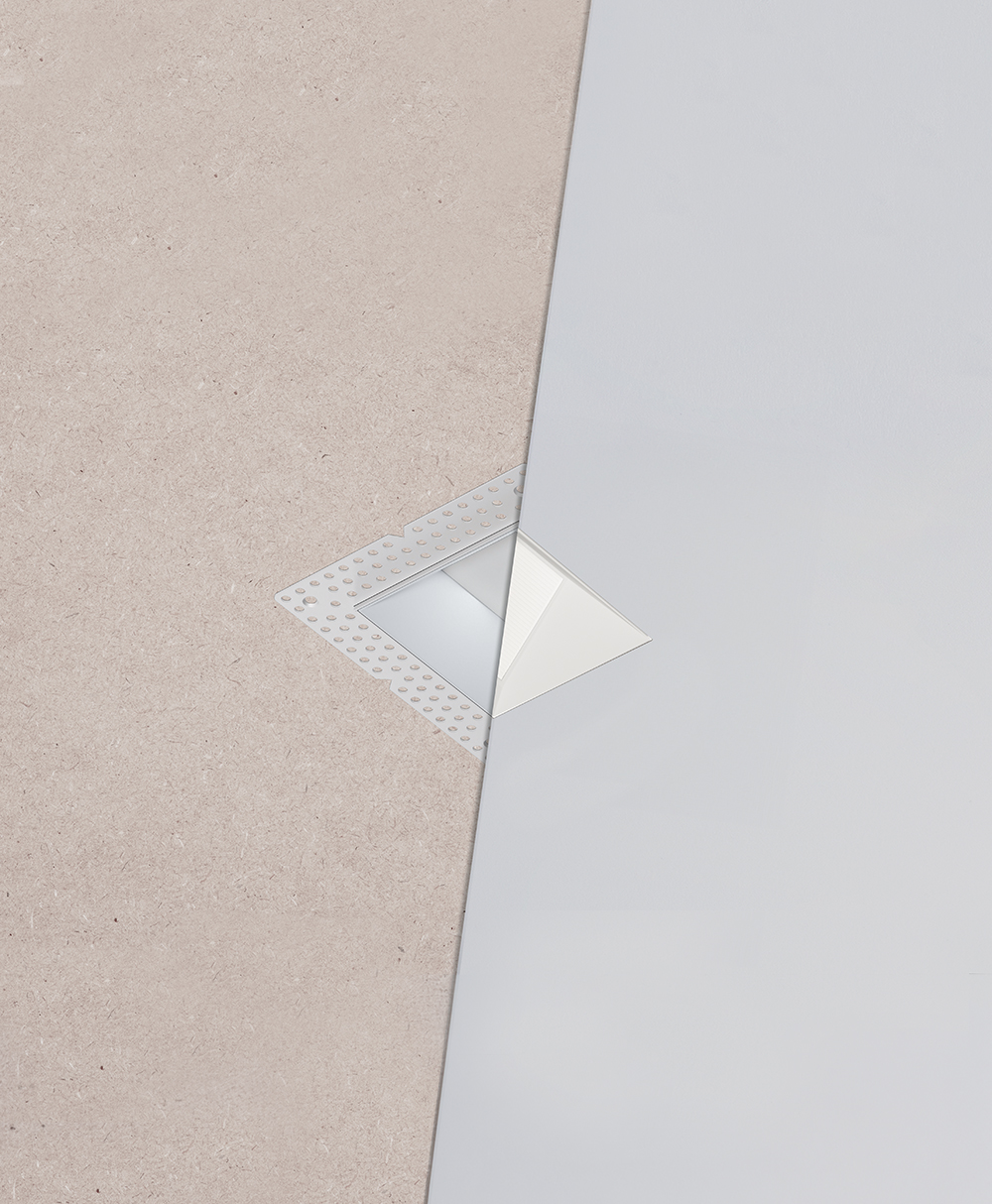

The SIGMA 2 Square Trimless Wall Wash delivers purpose-built, even wall illumination from a square aperture with no visible hardware. A linear spread lens carries light to nearly 90 degrees with no back-spill, while push-button clips replace old mouse-trap clips for a clean install that protects the ceiling finish. The result is an architectural wall wash that disappears into the ceiling and reads as a normal fixture from below.
Selected Order Number
Please validate selection on spec sheet
White
Black
Trimless Adapter Included
Trimless Adapter in 1/2" Drywall
Trimless Adapter in 5/8" Drywall
700 lm (IC Rated)
700 lm (IC Box)
1,100 lm (IC Rated)
1,100 lm (IC Box)
1600 lm (Non-IC)
1600 lm (IC Box)
900 lm (DTW, Non-IC)
900 lm (DTW, IC Box)
Dim to Warm
2700 K
3000 K
3500 K
4000 K
5000 K
Tunable White
TRIAC, 120V Input
Commercial, 120-277V, 0-10V
TRIAC, ELV, 0-10V, 120-277V Input
Rated -40°C, 0-10V, 120-277V & 347V Input
DALI, Rated -40°C, 120-277V & 347V Input
DMX, 120-277V Input
Emergency Backup, 0-10V, 120-277V Input
Lutron EcoSystem, 120-277V Input
Casambi Enabled Driver, 120-277V Input
120-277V
120V
277V
347V
Remodel
New Construction
Architectural C-Channel Brackets
New Construction w/ Chicago Plenum
Ship Complete
Ship Rough-in First
