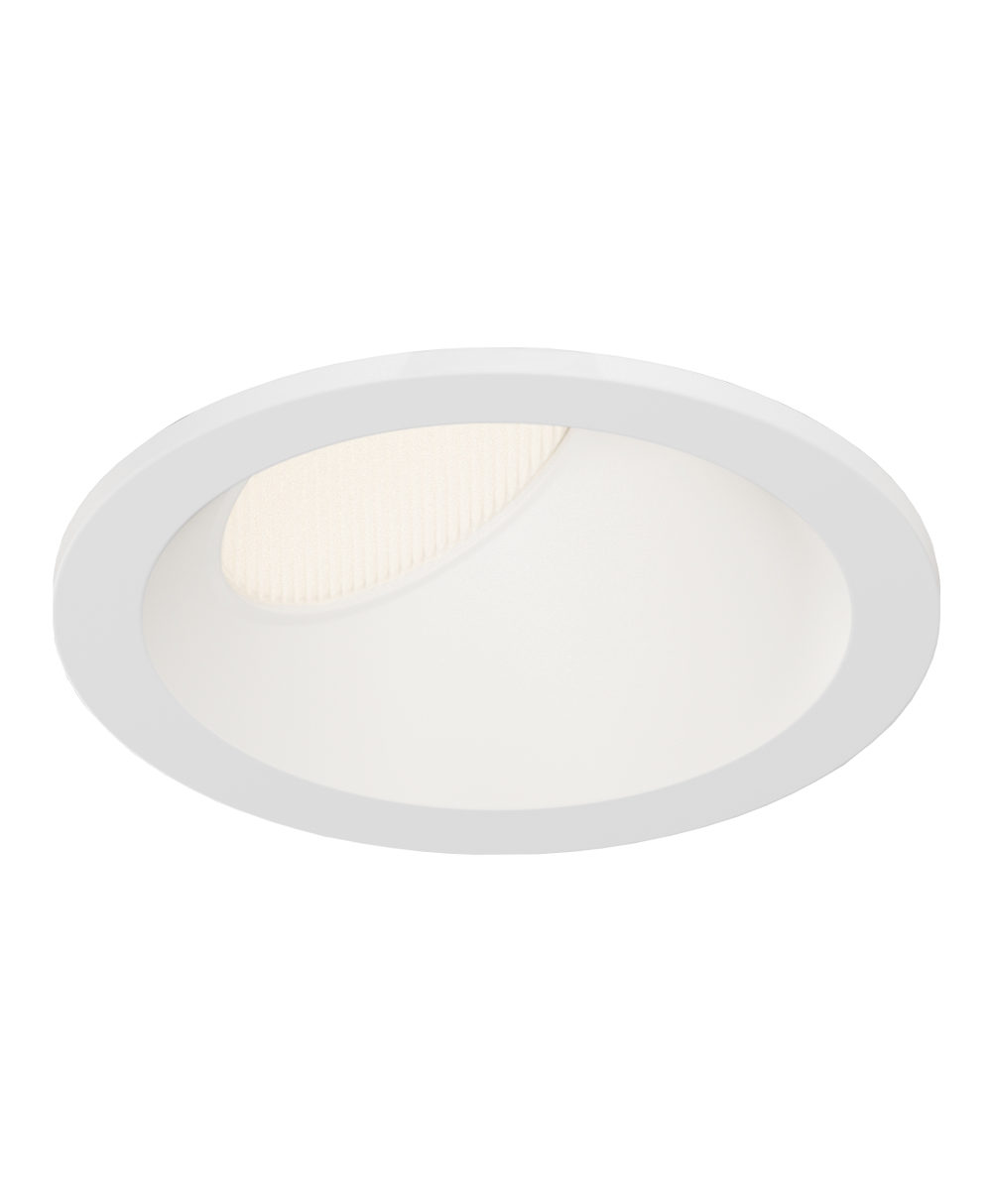

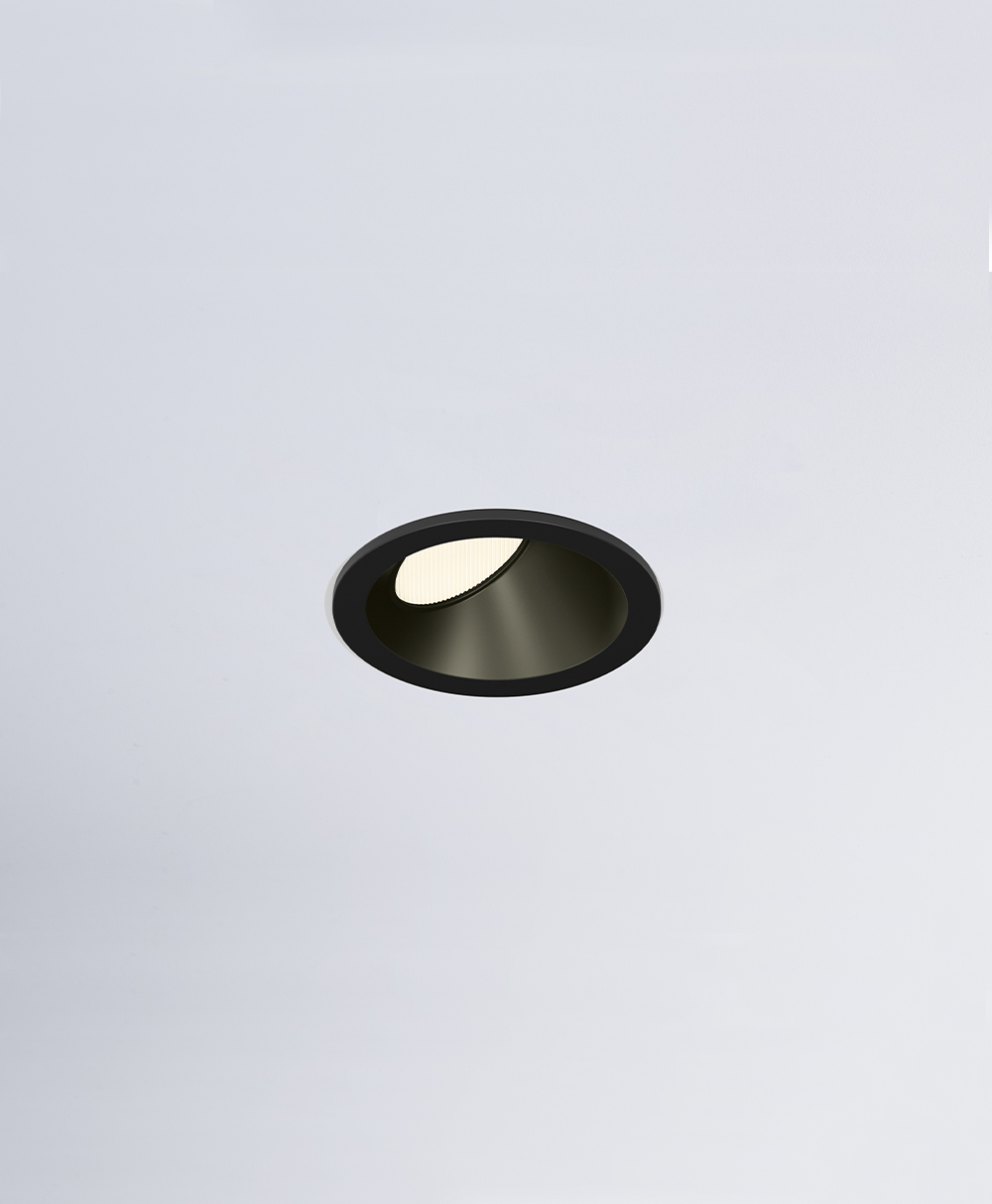

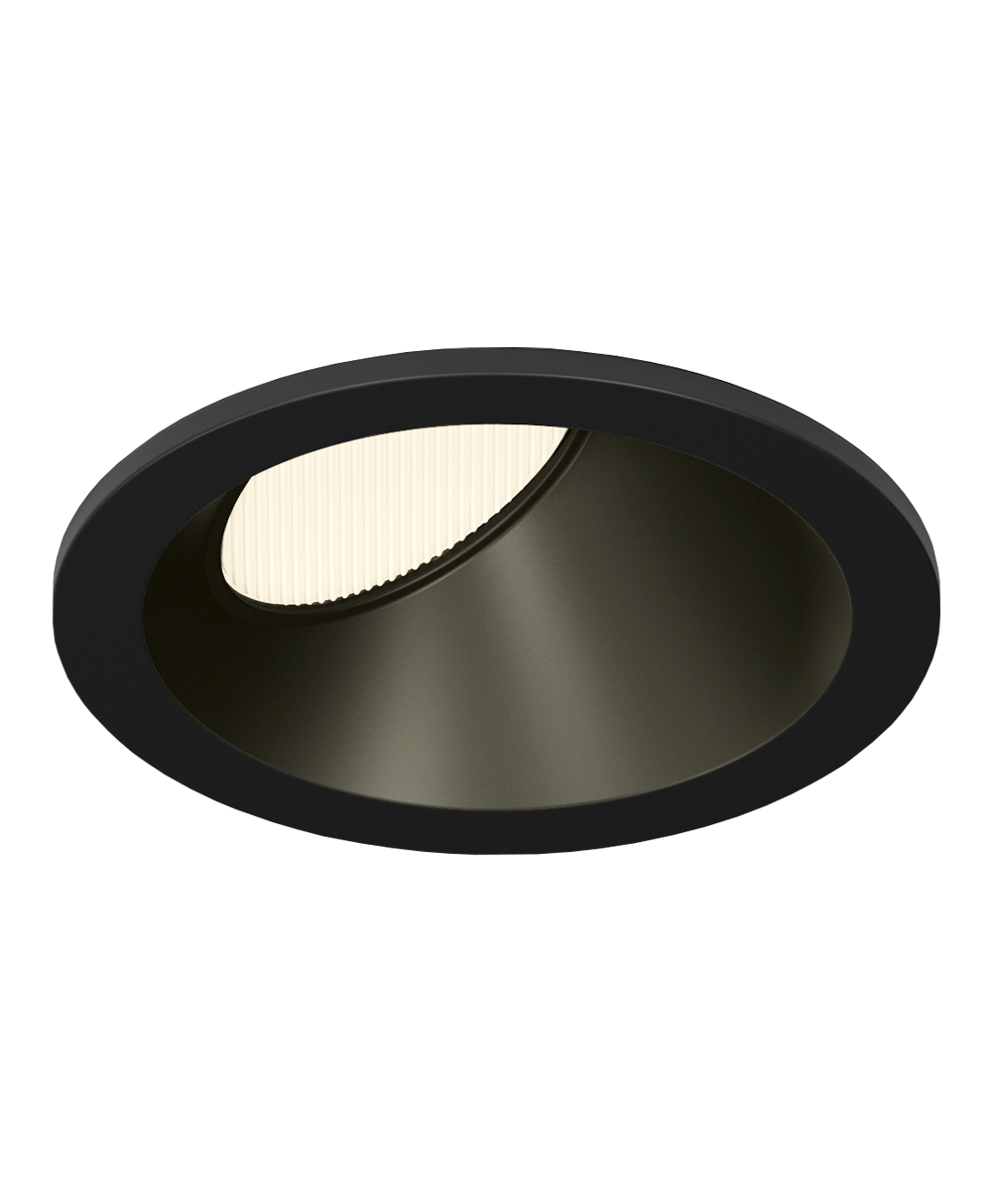

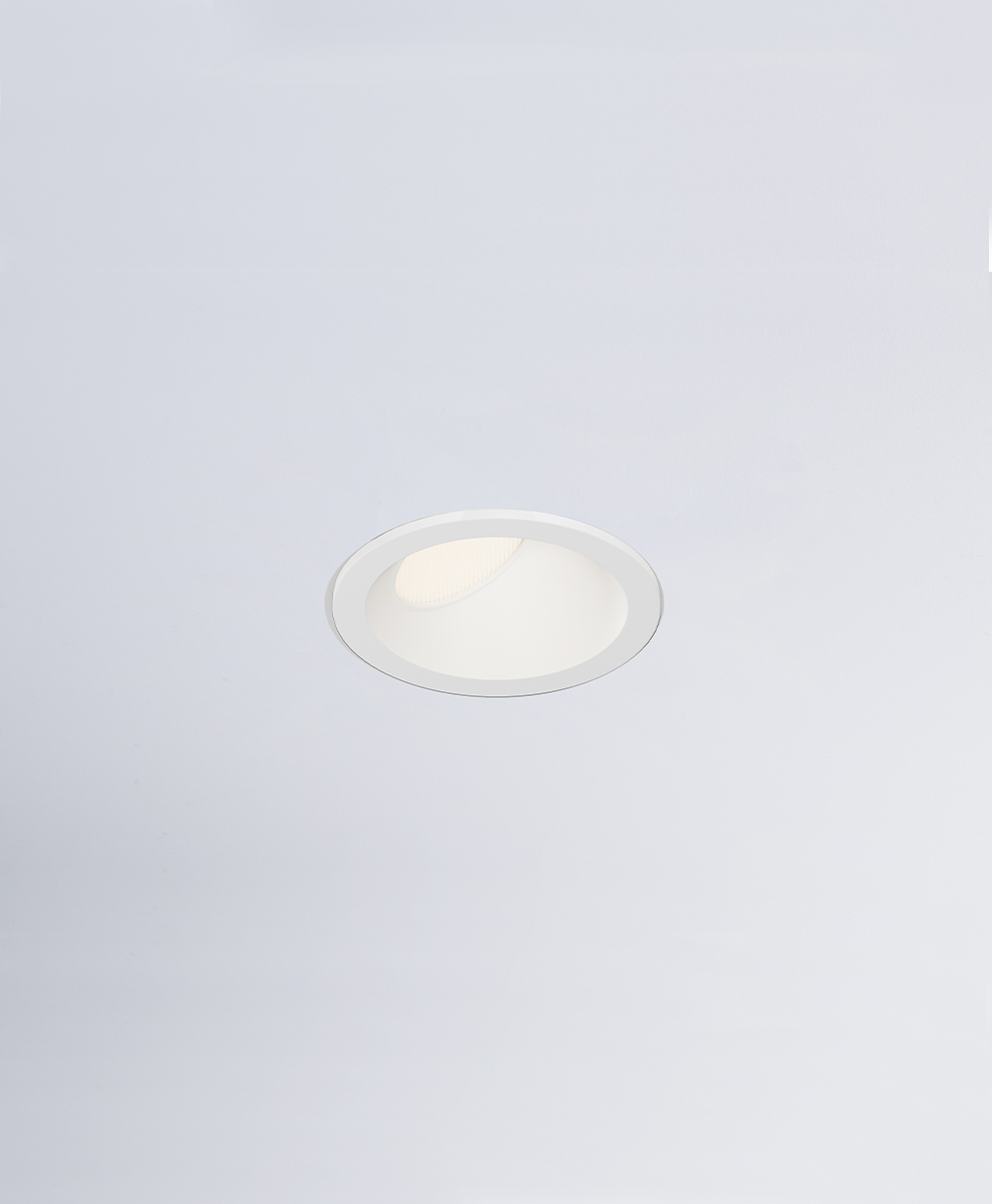

The SIGMA 2 Round Wall Wash is a dedicated, purpose-built washer that bathes walls in even, controlled light. A linear spread lens carries illumination to nearly 90 degrees with no back-spill into the room, and with no half-moon eyelet it reads as a clean, normal aperture from below. Built on Liteline's flagship SIGMA platform, it pairs precise wall-wash performance with a refined aesthetic.
Beam Angle
This is available with Wall wash lens.For UGR/Glare Data – please refer to the photometric reports.
Selected Order Number
Please validate selection on spec sheet
White
Black
700 lm (IC Rated)
700 lm (IC Box)
1,100 lm (IC Rated)
1,100 lm (IC Box)
1600 lm (Non-IC)
1600 lm (IC Box)
900 lm (DTW, Non-IC)
900 lm (DTW, IC Box)
Dim to Warm
2700 K
3000 K
3500 K
4000 K
5000 K
Tunable White
TRIAC, 120V Input
Commercial, 120-277V, 0-10V
TRIAC, ELV, 0-10V, 120-277V Input
Rated -40°C, 0-10V, 120-277V & 347V Input
DALI, Rated -40°C, 120-277V & 347V Input
DMX, 120-277V Input
Emergency Backup, 0-10V, 120-277V Input
Lutron EcoSystem, 120-277V Input
Casambi Enabled Driver, 120-277V Input
120-277V
120V
277V
347V
Remodel
New Construction
Architectural C-Channel Brackets
Ship Complete
Ship Rough-in First
