LUNA 4" DMX - RGBTW
Product Details
|
Description
|
LUNA 4" DMX - RGBTW
|
|
Part #
|
MASTER_RA4-12RG-DMX
|

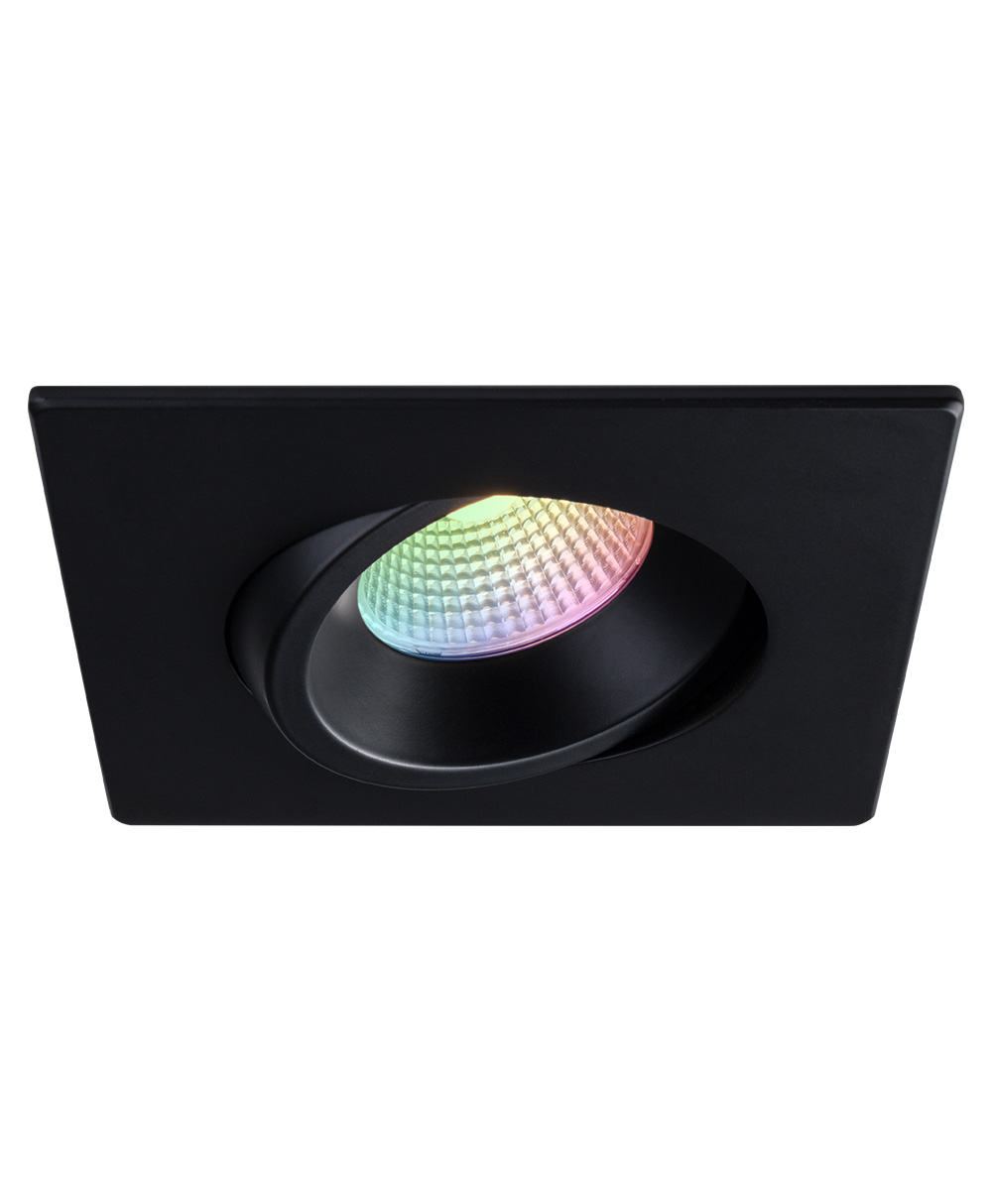

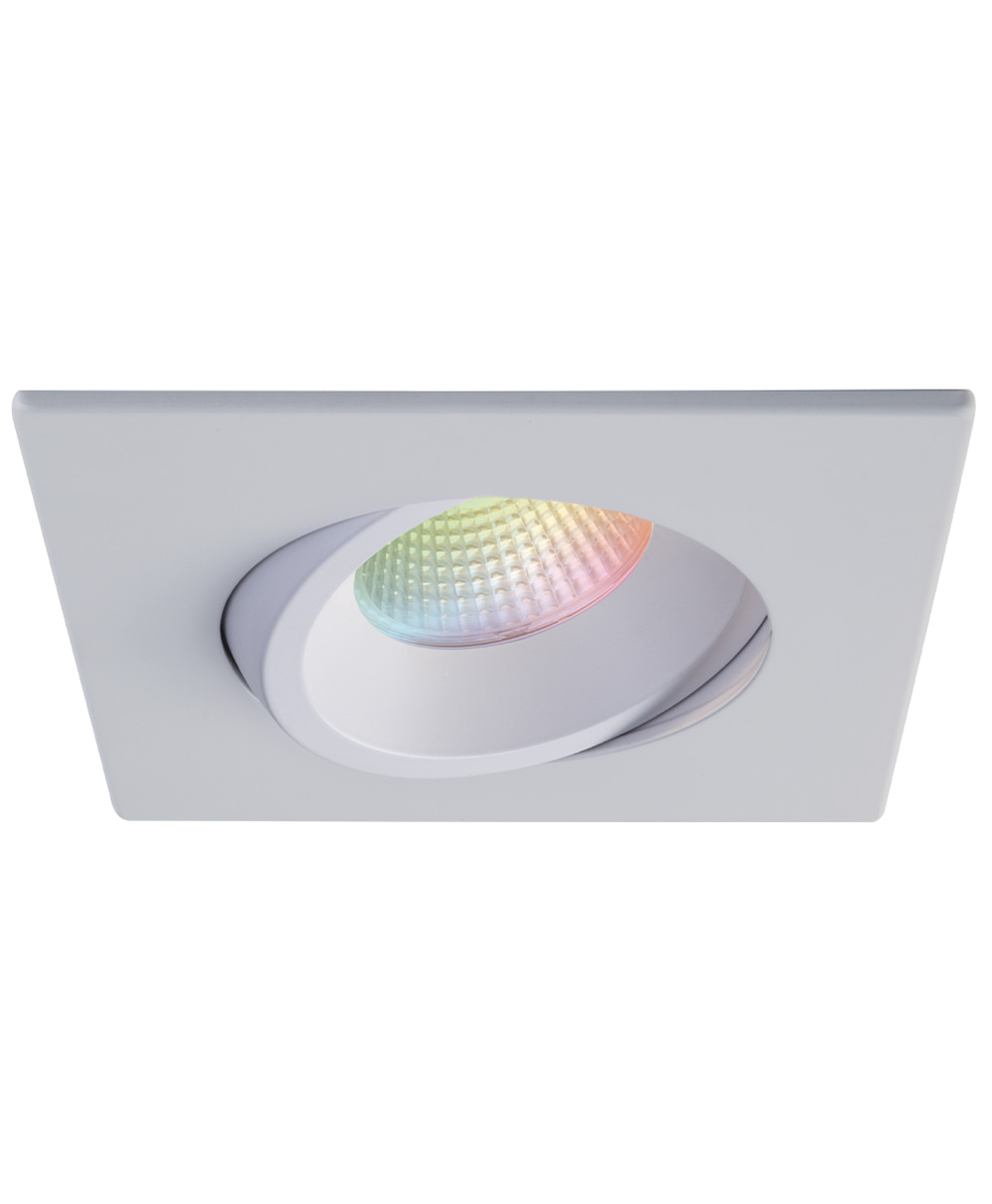

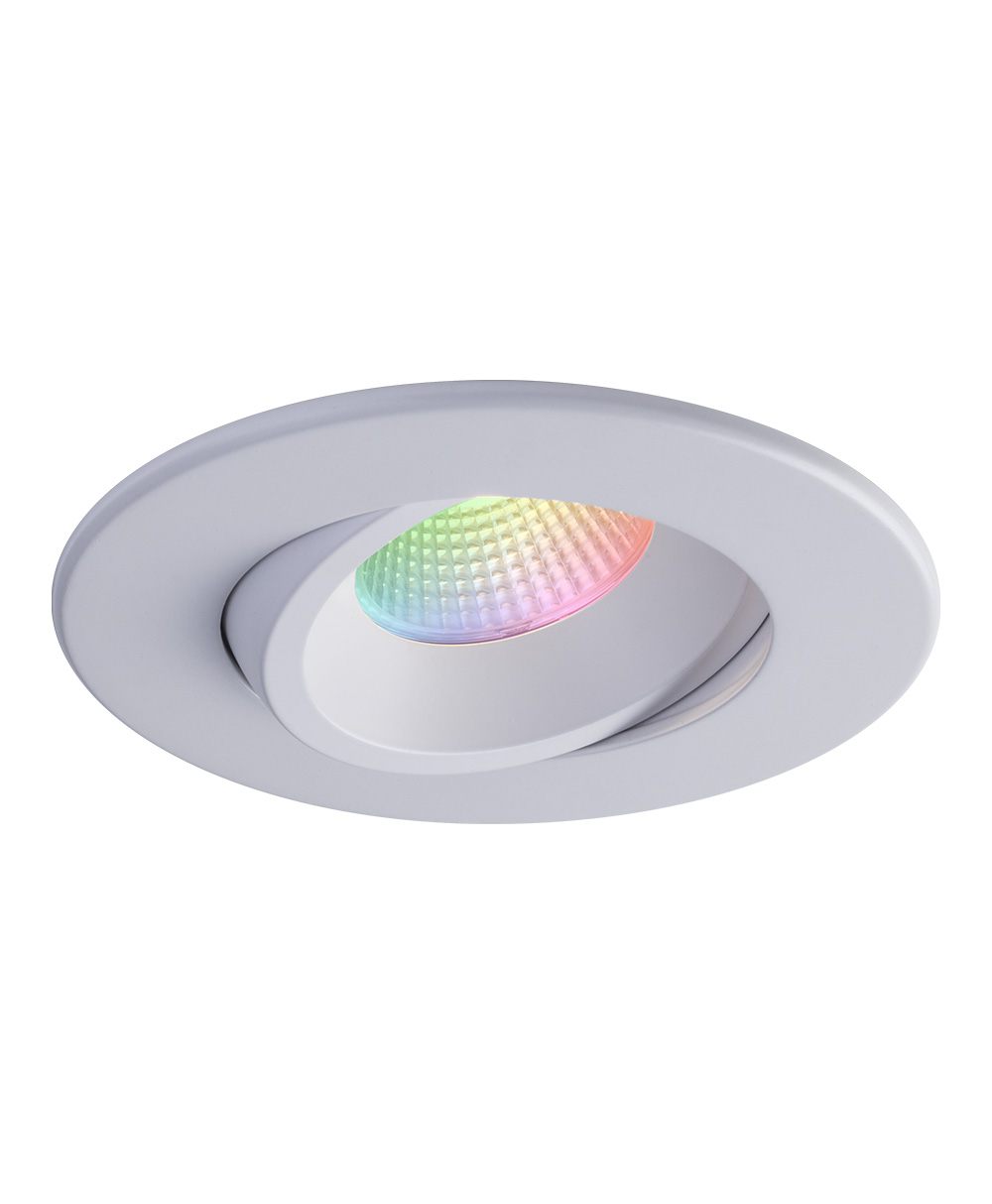

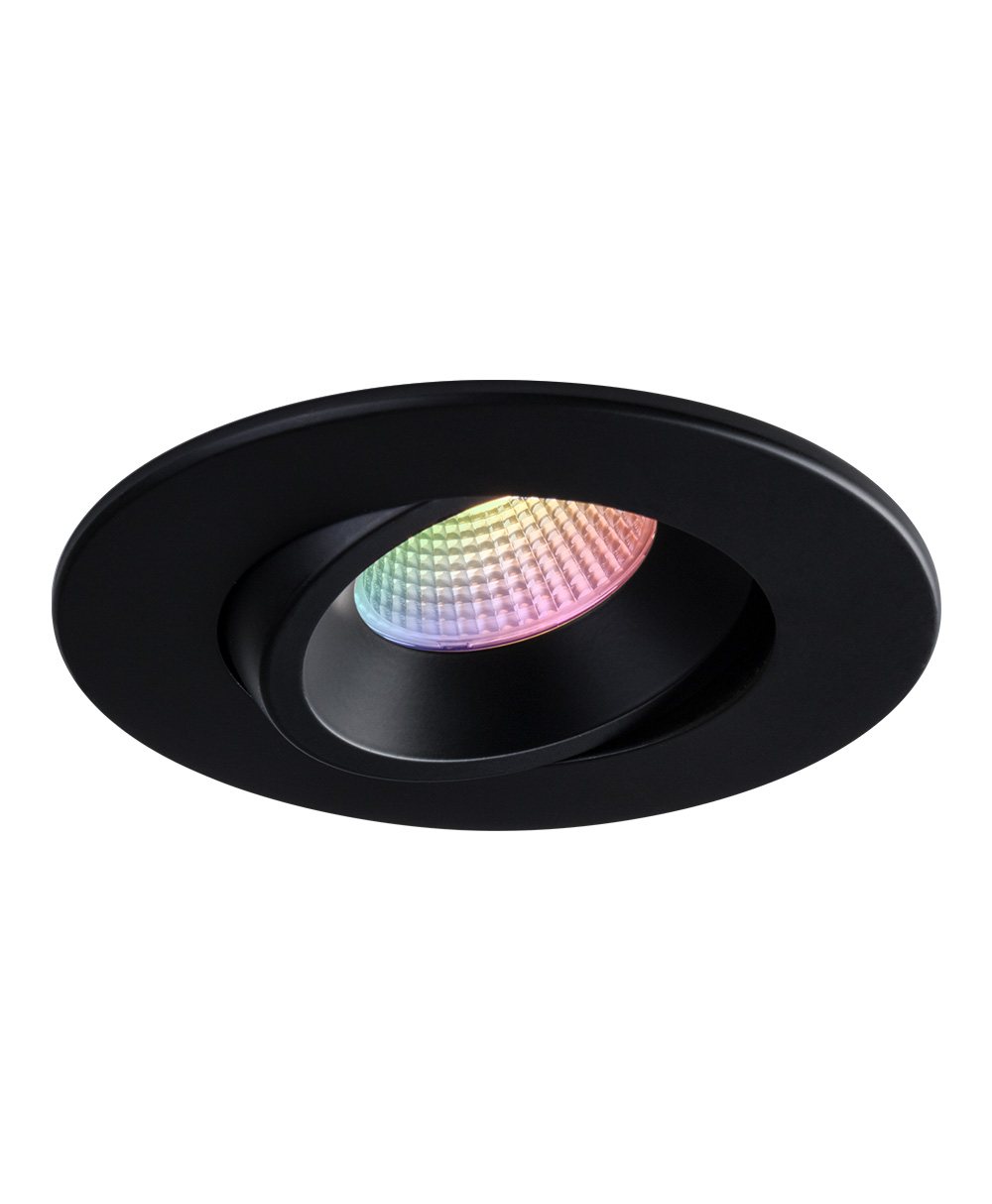

The LUNA DMX is a 4" regressed gimbal downlight built for spaces that demand dynamic, color-tunable lighting with precise DMX control. Its built-in 5-channel decoder enables independent control of brightness and color temperature across every RGB + Tunable White channel. Compatible with leading smart home platforms and wet location rated, it suits both residential and commercial applications.
Feature List
Body & Construction
Durable airtight aluminum body with adjustable regressed gimbal. Includes anodized blue heat sink for maximum airflow around the LED module. Two spring-loaded clips attach to any ceiling material. Suitable for wet locations, direct contact with insulation, and indoor/outdoor applications.
DMX/RDM Control
Full DMX512/1990 and RDM/2009 protocol compliance. The integrated 5-channel constant current DMX decoder enables precise, per-channel intensity control across all RGB + Tunable White channels – including independent brightness and colour temperature adjustment. Factory default DMX address: 001.
Integrated Decoder – No External Driver Required
The luminaire includes a built-in 5-channel constant current DMX decoder housed in an extruded aluminum hardwire box. NOTE: A 48V non-dimmable constant voltage power supply is required and provided by others.
CCT Mode
When CCT Mode is enabled (ON) via the on-device OLED menu, Channel 4 controls overall brightness and Channel 5 controls tunable white (2700 K-5000 K), allowing direct scene customization without requiring a separate controller channel map.
8-Bit Dimming Resolution
Dimming resolution supports 8-bit (256 steps) for smooth, flicker-free dimming from 100% to 1%.
Broad Control System Compatibility
Compatible with leading DMX control ecosystems including Lutron HomeWorks, Crestron, Control4, Savant, Josh.ai, and Vantage – enabling seamless integration into residential and commercial smart lighting environments.
Quick Connect Wiring
The DMX decoder has a removable block connector for simplified power and DMX control field wiring.
Minimum Starting Temperature
-20°C (-4°F)
Accessories
Please select a specific item to view its accessories
Specifications
| Smart Drivers | OnCloud |
| Luminaire Type | Recessed |
| Product Family | LUNA |
