LUNA MULTI
Product Details
|
Description
|
LUNA MULTI
|
|
Part #
|
MASTER_RA4-10G_OJB
|

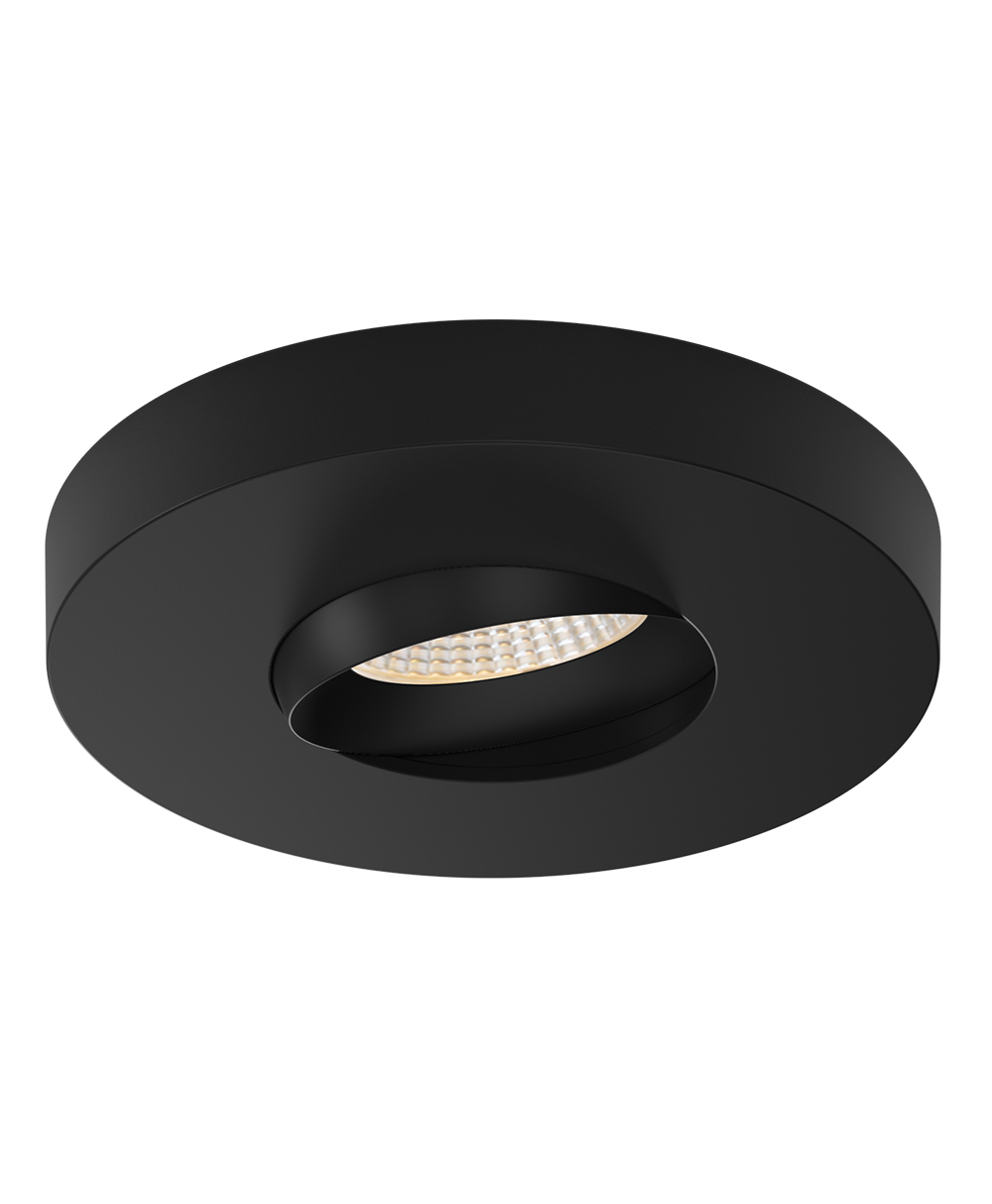

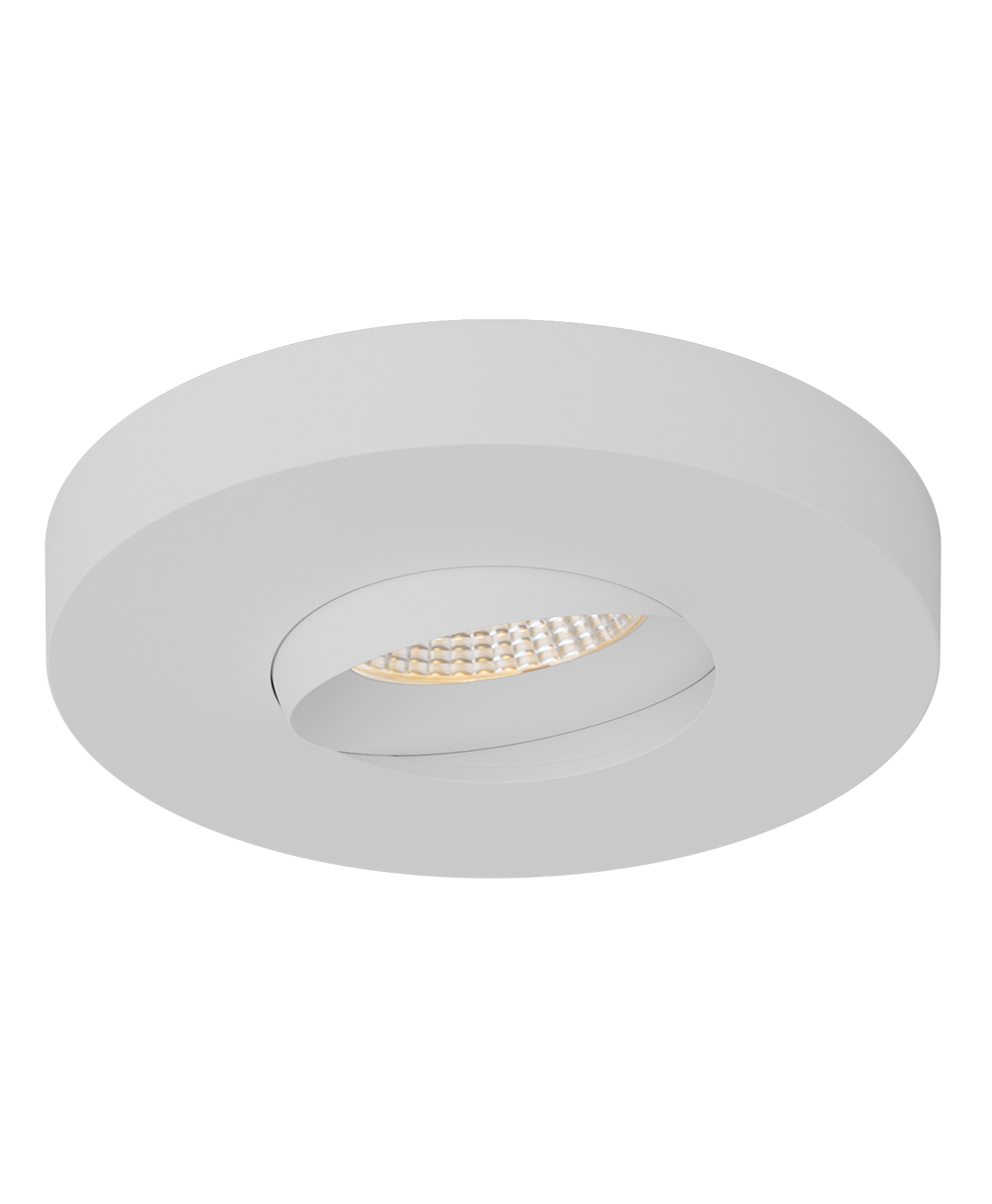

A sleek 4" retrofit downlight with 36° of adjustable aim, delivering up to 900 lumens of light exactly where it's needed. Its low-profile gimbal design makes it easy to accent a feature wall, highlight artwork, or wash a hallway in even illumination. Built for effortless installs and designed to blend seamlessly into any space, LUNA MULTI brings flexible performance to multifamily, residential, and commercial projects alike.
Item Color

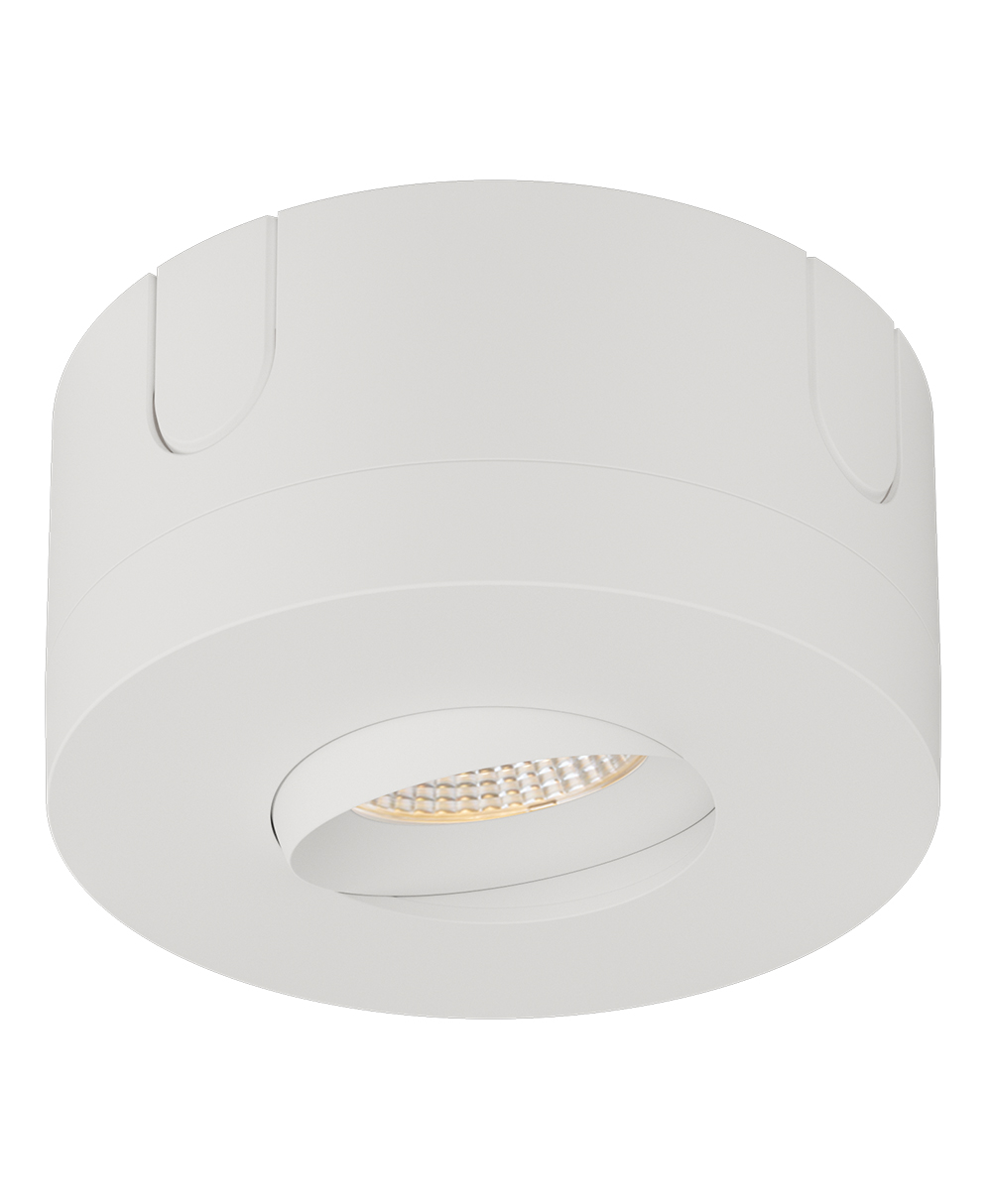

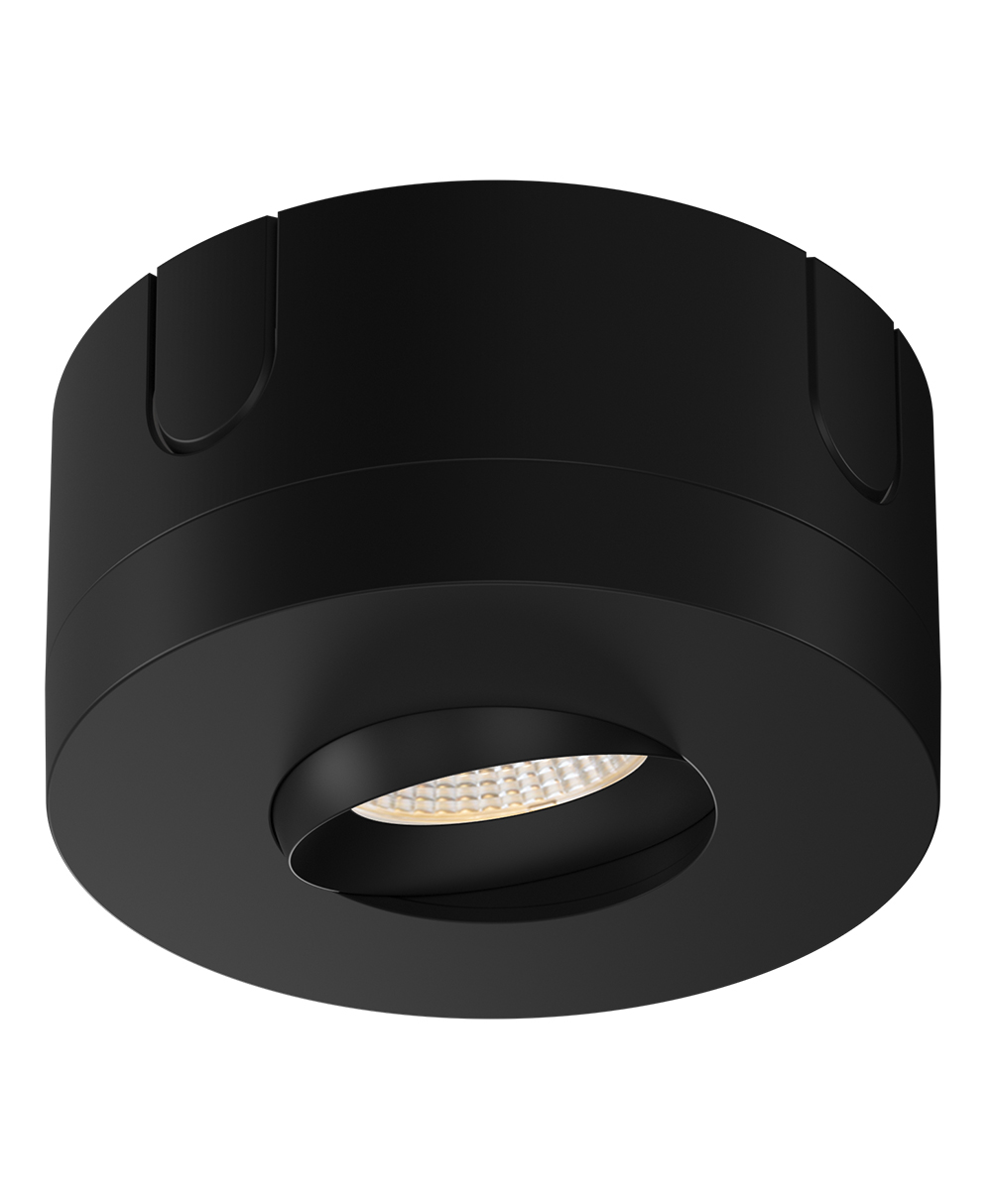

Surface Mount Collar
Feature List
Body
Durable aluminum body with 36° (18° per side) adjustable gimbal.
LED Characteristics
This general application light fixture features a 10 watt LED module that maintains uniform intensity producing up to 900 lumens; with a typical CRI of 90. On-fixture color selectable switch with a CCT range of 2700 K ~ 5000 K color temperatures.
Dimming
100%-1% dimming capability. This fixture is compatible with industry standard TRIAC/ELV dimmers. For compatible dimmers, visit www.liteline. com/LUNAMULTI.
Beam Spread
The fixture lens provides 40° beam spread.
Mounting

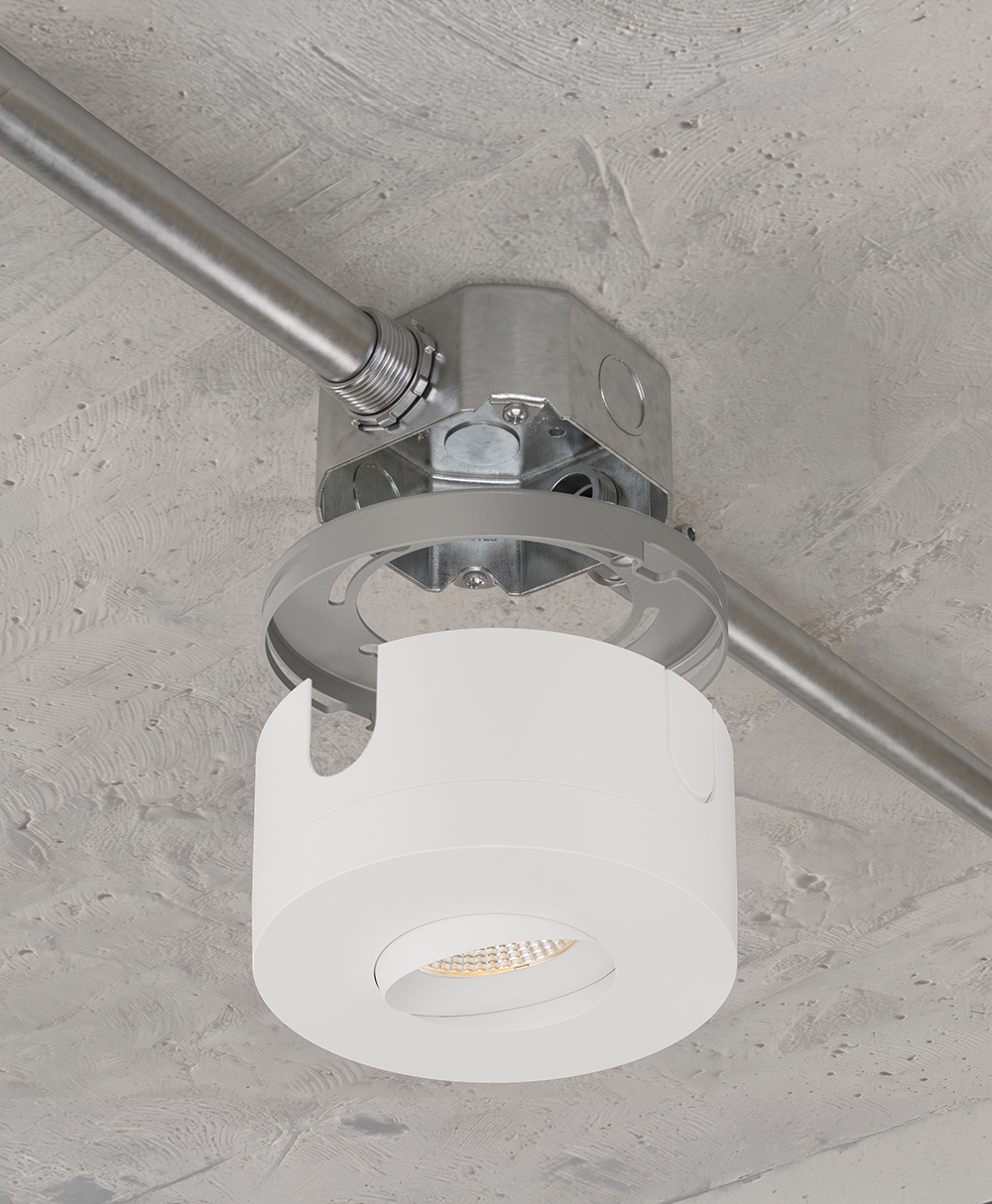

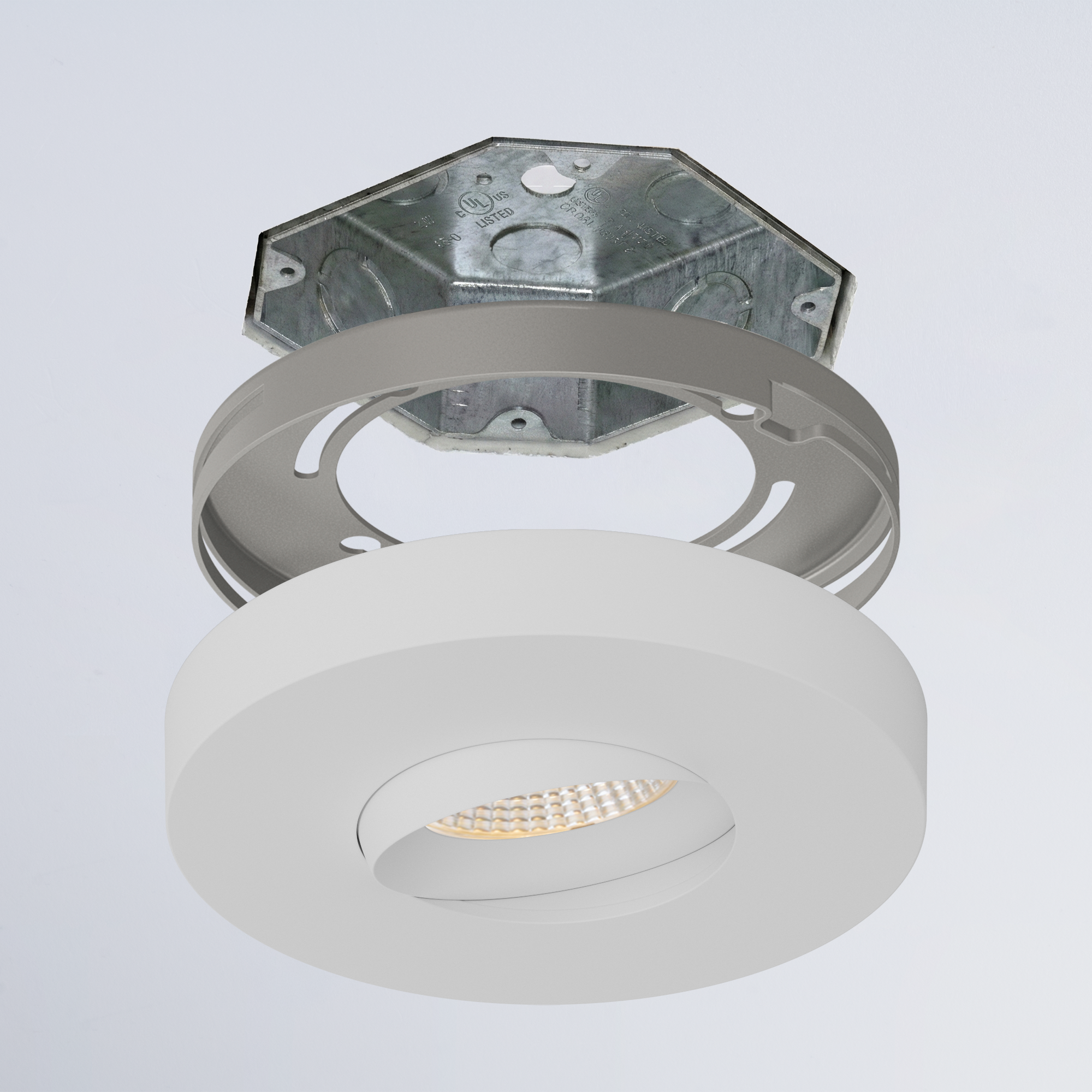

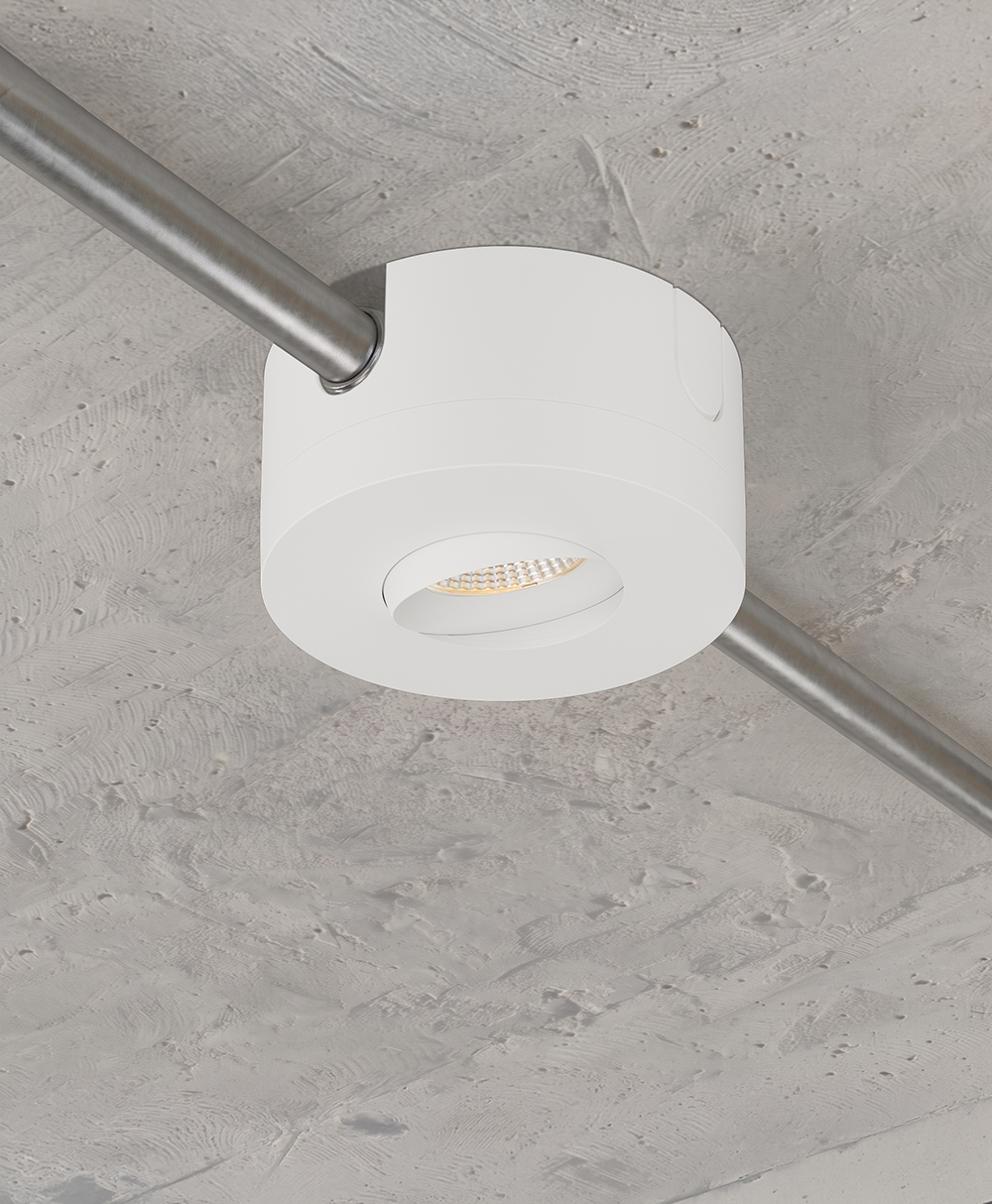

Includes a mounting bracket to attach to an industry standard 4" octagon boxes with minimum depth of 1.5" (38mm) via mounting holes. Surface mount collar for surface mount junction boxes available (sold separately).
LED Driver
Built-in on board driver with 100-135V AC input.
Quick Connect push-in terminals
Three “Quick connect” push-in terminals for fast and easy wiring.
Operating Temperature
-25°C~40°C (-13°F~104°F)
Environment
• Suitable for wet locations (excluding when used with surface mount collar).
• Indoor / Outdoor rated.
• Fire-rated when used in a steel octagon box.
Accessories
Please select a specific item to view its accessories
Specifications
| Luminaire Type | Recessed |
| Product Family | LUNA |
Accessories
Please select a specific item to view its accessories
Product Features
Body
Durable aluminum body with 36° (18° per side) adjustable gimbal.
LED Characteristics
This general application light fixture features a 10 watt LED module that maintains uniform intensity producing up to 900 lumens; with a typical CRI of 90. On-fixture color selectable switch with a CCT range of 2700 K ~ 5000 K color temperatures.
Dimming
100%-1% dimming capability. This fixture is compatible with industry standard TRIAC/ELV dimmers. For compatible dimmers, visit www.liteline. com/LUNAMULTI.
Beam Spread
The fixture lens provides 40° beam spread.
Mounting
Includes a mounting bracket to attach to an industry standard 4" octagon boxes with minimum depth of 1.5" (38mm) via mounting holes. Surface mount collar for surface mount junction boxes available (sold separately).
LED Driver
Built-in on board driver with 100-135V AC input.
Quick Connect push-in terminals
Three “Quick connect” push-in terminals for fast and easy wiring.
Operating Temperature
-25°C~40°C (-13°F~104°F)
Environment
• Suitable for wet locations (excluding when used with surface mount collar).
• Indoor / Outdoor rated.
• Fire-rated when used in a steel octagon box.
