ORBIT MULTI
Product Details
|
Description
|
ORBIT MULTI
|
|
Part #
|
MASTER_ORBIT_JBOX
|

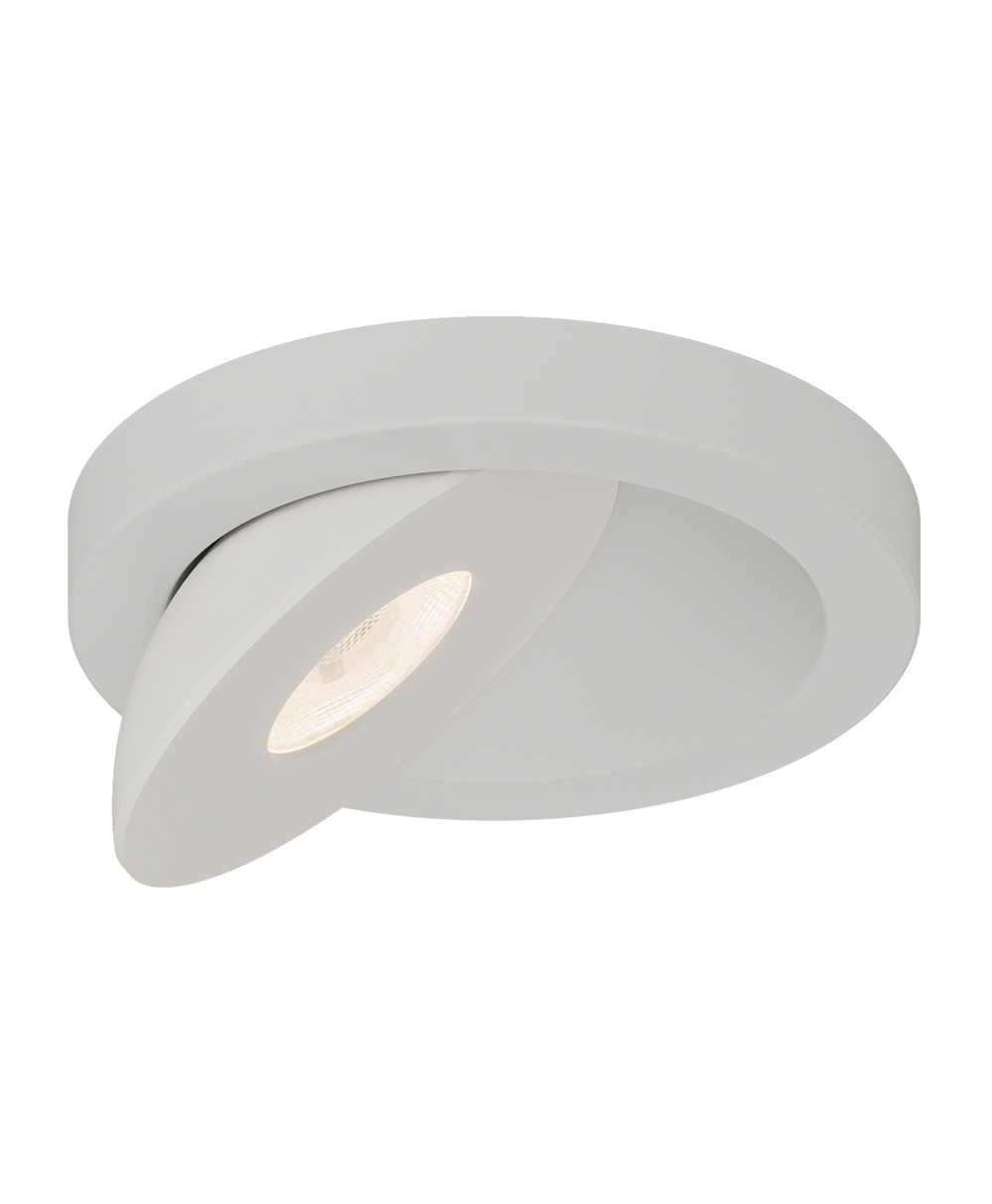

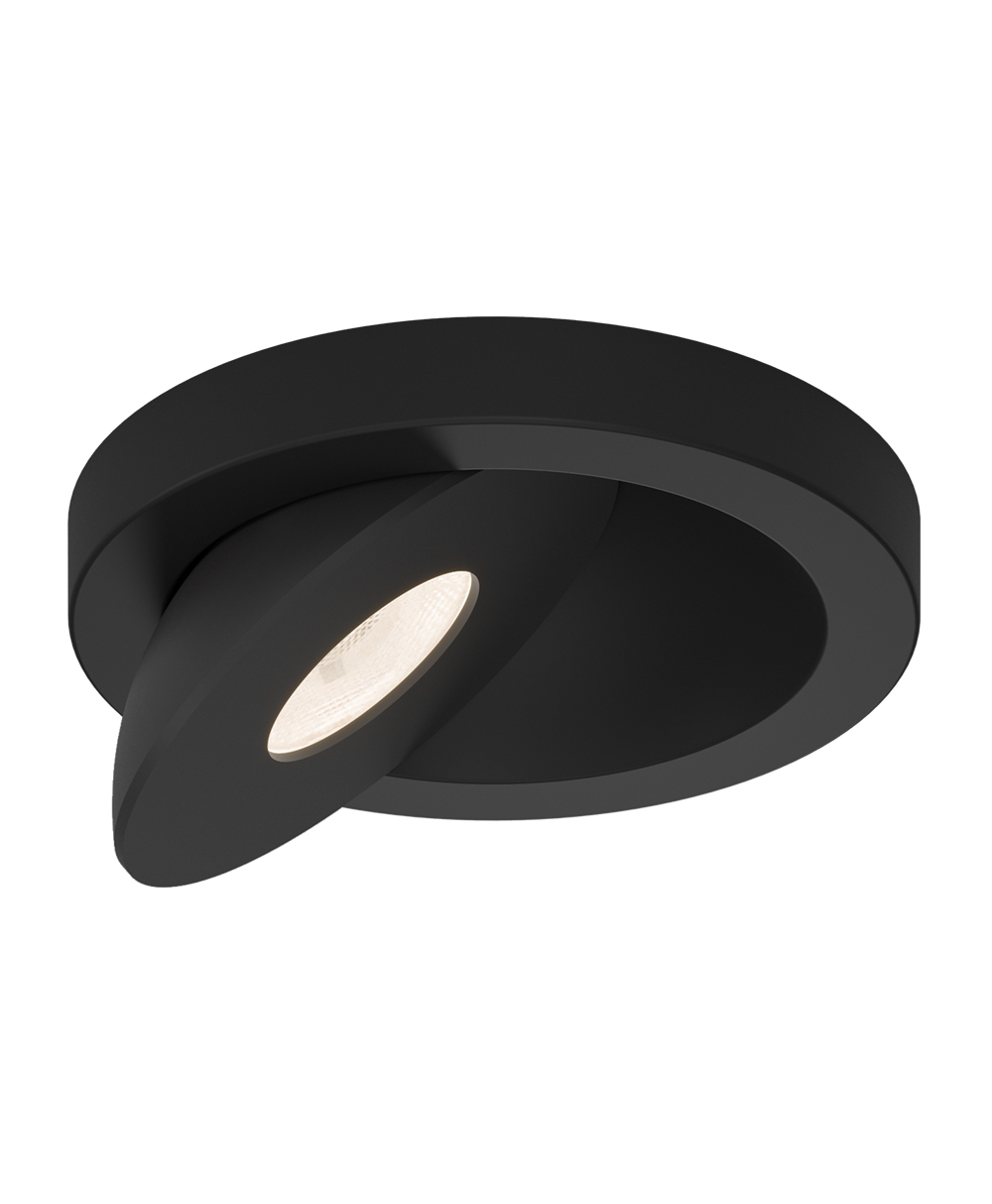

With full 360° rotation and 50° of tilt, the ORBIT MULTI 4" retrofit downlight puts light exactly where you want it, even on sloped ceilings. Up to 815 lumens of adjustable output makes it a natural fit for angling onto artwork, highlighting architectural features, or directing task light into a specific corner of a room. Compact, easy to install, and unobtrusive once in place, ORBIT MULTI adapts to the layout of multifamily, residential, and commercial spaces alike.
Feature List
Body
Durable aluminum body with 360° rotation and 50° tilting.
LED Characteristics
This general application light fixture features a 9 watt LED module that maintains uniform intensity producing up to 815 lumens; with a typical CRI of 90. With a CCT range of 2700 K - 5000 K color temperature.
Dimming
100%-1% dimming capability. This fixture is compatible with industry standard TRIAC/ELV dimmers. For compatible dimmers, visit www. liteline.com/Orbit
Beam Spread
The fixture lens provides 50° beam spread.

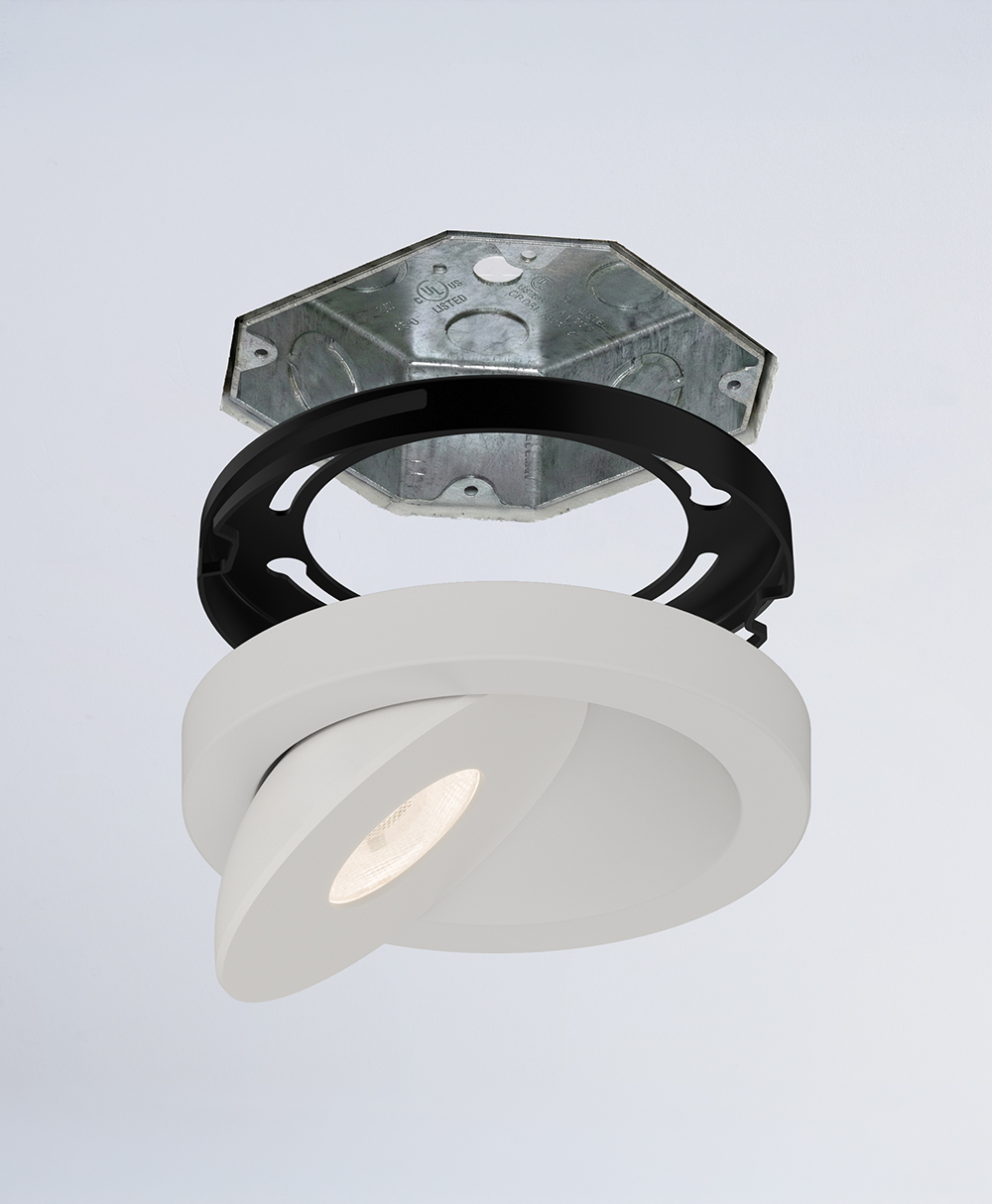

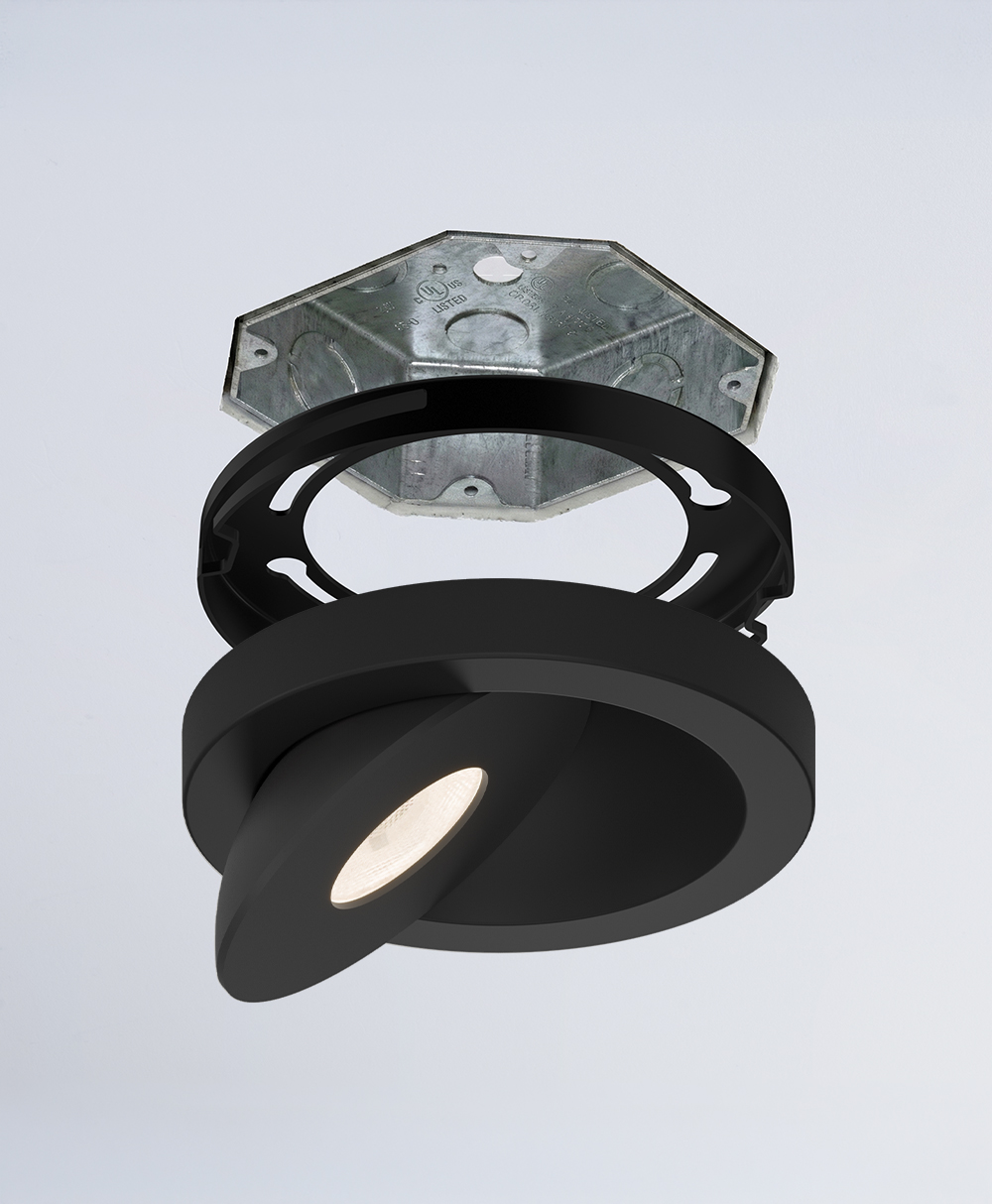

Mounting
Includes a mounting bracket to attach to an industry standard 4" octagon boxes with minimum depth of 1.5" (38mm) via mounting holes.
LED Driver
Built-in on board driver with 100-135V AC input.
Quick Connect push-in terminals
Three “Quick connect” push-in terminals for fast and easy wiring.
Operating Temperature
-25°C~40°C (-13°F~104°F)
Environment
• Suitable for wet locations2 .
• Indoor / Outdoor rated.
• Fire-rated when used in a steel octagon box.
